104549-5

Agastat Relays / TE Connectivity

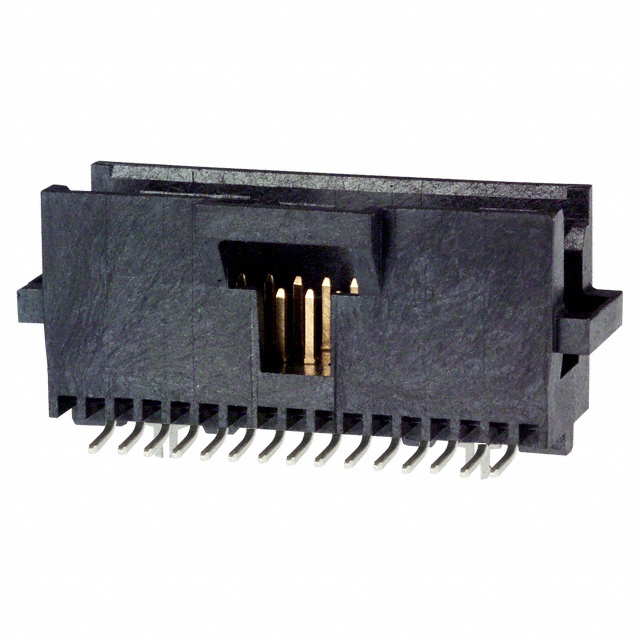

Image may be representation. See specifications for product details.

Product Overview

Part Number:	104549-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT .050 30POS AU
Datasheets:	104549-5.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	14017 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14017 pcs

Reference Price (In US Dollars)

1 pcs: $2.54

20 pcs: $2.434

100 pcs: $2.011

500 pcs: $1.693

1000 pcs: $1.482

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.54

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 104549-5

Part Number	104549-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT .050 30POS AU	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	14017 pcs	Data sheet	104549-5.pdf
Voltage Rating	30VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU System 50	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	A3252
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Polyphthalamide (PPA)	Insulation Height	0.435" (11.05mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount 30 position 0.050" (1.27mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.125" (3.18mm)	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
