103639-4

Agastat Relays / TE Connectivity

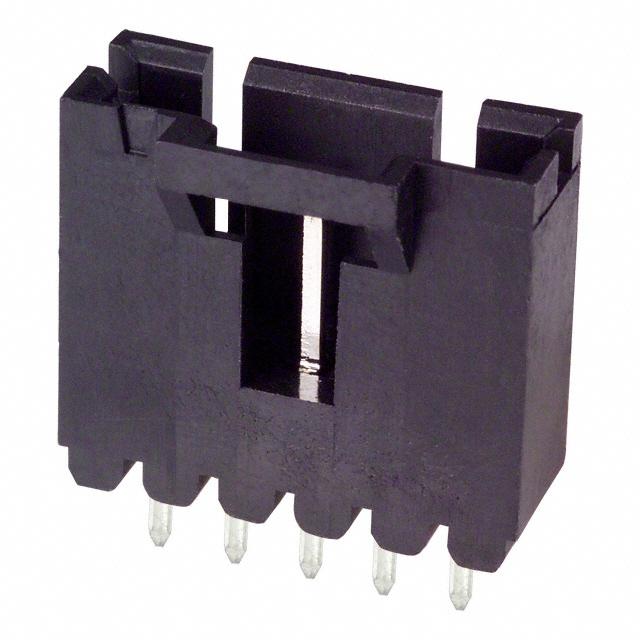

Image may be representation. See specifications for product details.

Product Overview

Part Number:	103639-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT 5POS PCB TIN
Datasheets:	103639-4.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	56270 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 56270 pcs

Reference Price (In US Dollars)

1 pcs: $0.661

36 pcs: $0.563

108 pcs: $0.514

504 pcs: $0.429

1008 pcs: $0.367

5004 pcs: $0.326

10008 pcs: $0.318

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.661

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 103639-4

Part Number	103639-4	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT 5POS PCB TIN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	56270 pcs	Data sheet	103639-4.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU MTE	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.545" (13.84mm)	Other Names	103639-4-ND 1036394 A28534
Operating Temperature	-65°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Thermoplastic	Insulation Height	0.535" (13.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 5 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Tin-Lead	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
