102155-3

Agastat Relays / TE Connectivity

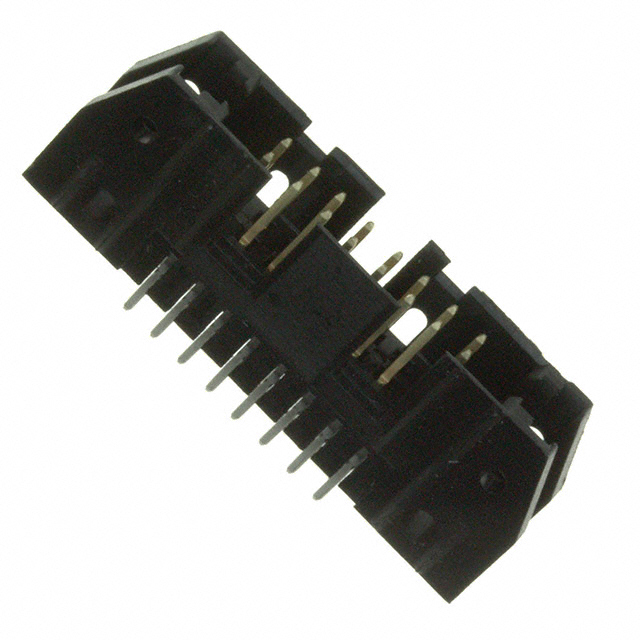

Image may be representation. See specifications for product details.

Product Overview

Part Number:	102155-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT 16POS .100 GOLD
Datasheets:	102155-3.pdf
RoHs Status	Lead free / RoHS non-compliant
Stock Condition	90634 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 90634 pcs

Reference Price (In US Dollars)

910 pcs: $0.424

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.424

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 102155-3

Part Number	102155-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT 16POS .100 GOLD	Lead Free Status / RoHS Status	Lead free / RoHS non-compliant
Quantity Available	90634 pcs	Data sheet	102155-3.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.684" (17.37mm)	Other Names	102155-3-ND AHJ16G
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS non-compliant
Insulation Material	-	Insulation Height	0.549" (13.94mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 16 position 0.100" (2.54mm)	Current Rating	1A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.155" (3.94mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold or Gold-Palladium	Connector Type	Header
Applications	-
