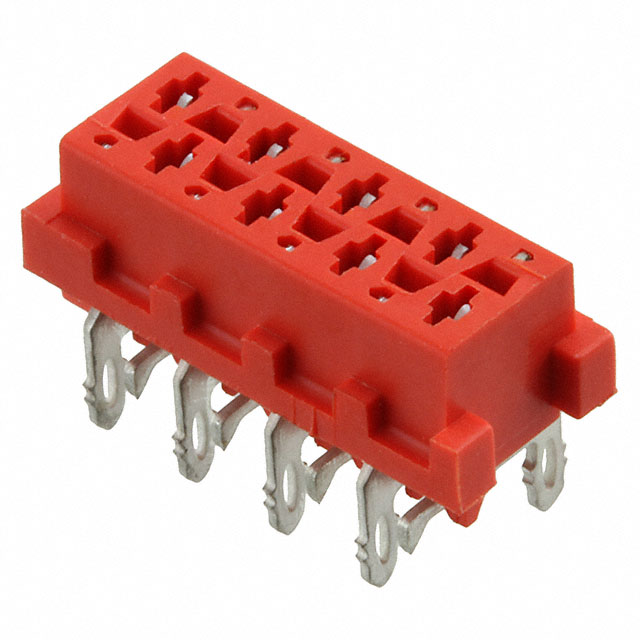

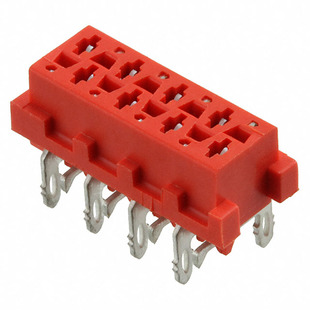

Agastat Relays / TE Connectivity
| Part Number | 100411-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FMALE-SMC 8POS VERT POLAR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 124547 pcs | Data sheet | 100411-8.pdf |
| Voltage Rating | 100VDC | Termination | Solder |
| Style | Board to Board or Cable | Series | Micro-MaTch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | 100411-8-ND A116156TR |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.094" (2.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
