1-966645-0

Agastat Relays / TE Connectivity

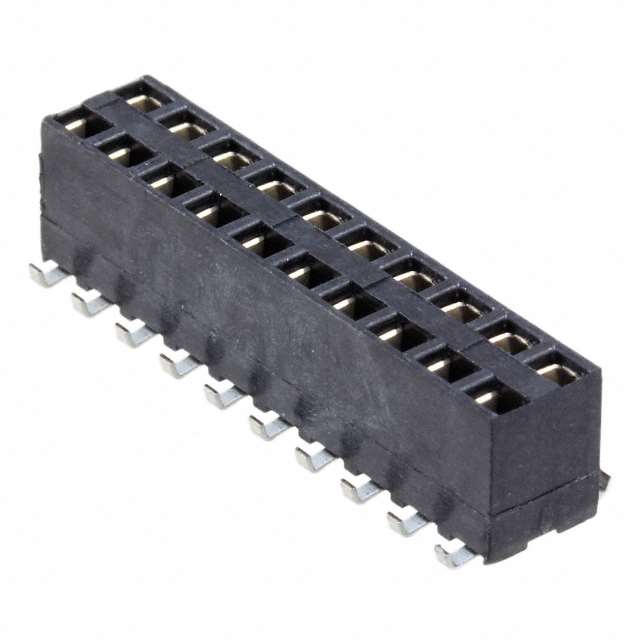

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-966645-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RCPT 20POS VERT .100 SMD
Datasheets:	1-966645-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34985 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34985 pcs

Reference Price (In US Dollars)

1000 pcs: $1.053

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.053

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-966645-0

Part Number	1-966645-0	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RCPT 20POS VERT .100 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34985 pcs	Data sheet	1-966645-0.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Series	AMPMODU HV-100
Row Spacing - Mating	0.100" (2.54mm)	Pitch - Mating	0.100" (2.54mm)
Packaging	Tube	Other Names	1-966645-0-ND 19666450 A115015
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.244" (6.20mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	20 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Current Rating	-	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Finish Thickness - Post	98.4µin (2.50µm)
Contact Finish Thickness - Mating	31.5µin (0.80µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle, Bottom or Top Entry
Applications	-
