1-963215-1

Agastat Relays / TE Connectivity

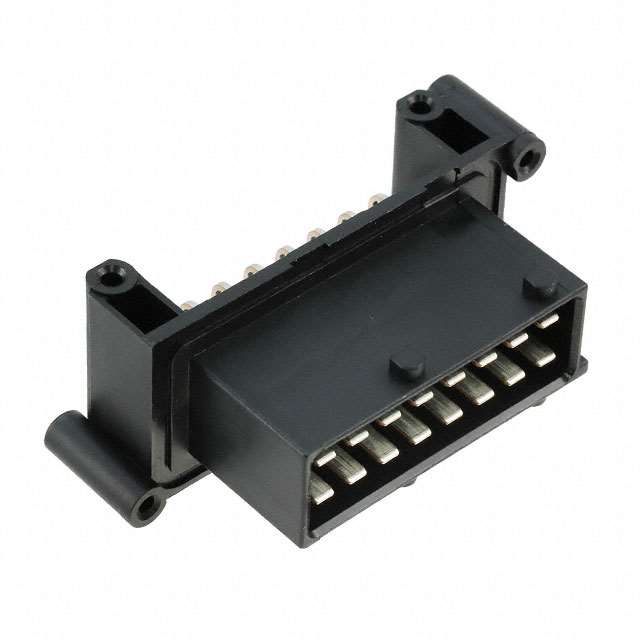

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-963215-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN TAB HEADER 16POS R/A TIN
Datasheets:	1-963215-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7983 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7983 pcs

Reference Price (In US Dollars)

1 pcs: $4.411

32 pcs: $3.91

128 pcs: $3.408

512 pcs: $2.907

1024 pcs: $2.666

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.411

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-963215-1

Part Number	1-963215-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN TAB HEADER 16POS R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7983 pcs	Data sheet	1-963215-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Junior Power Timer	Row Spacing - Mating	0.236" (6.00mm)
Pitch - Mating	0.197" (5.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	1-963215-1-ND A123129
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	23 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	1.055" (26.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Lever Lock
Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.197" (5.00mm)	Current Rating	-
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.122" (3.10mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Plug
Applications	Automotive, General Purpose
