1-794303-1

Agastat Relays / TE Connectivity

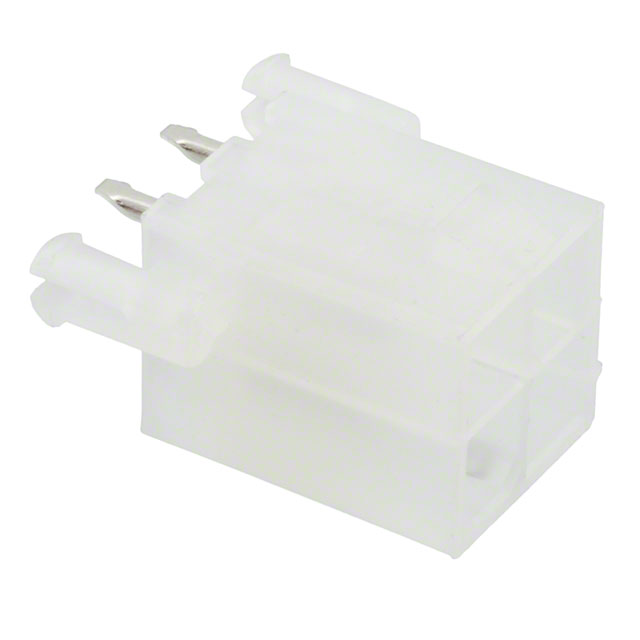

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-794303-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT 4POS TIN PCB
Datasheets:	1-794303-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2950 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2950 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-794303-1

Part Number	1-794303-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT 4POS TIN PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2950 pcs	Data sheet	1-794303-1.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMP-DUAC	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	1-794303-1-ND A112807
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.504" (12.80mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Lock
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 4 position 0.165" (4.20mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	118.1µin (3.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
