1-794130-1

Agastat Relays / TE Connectivity

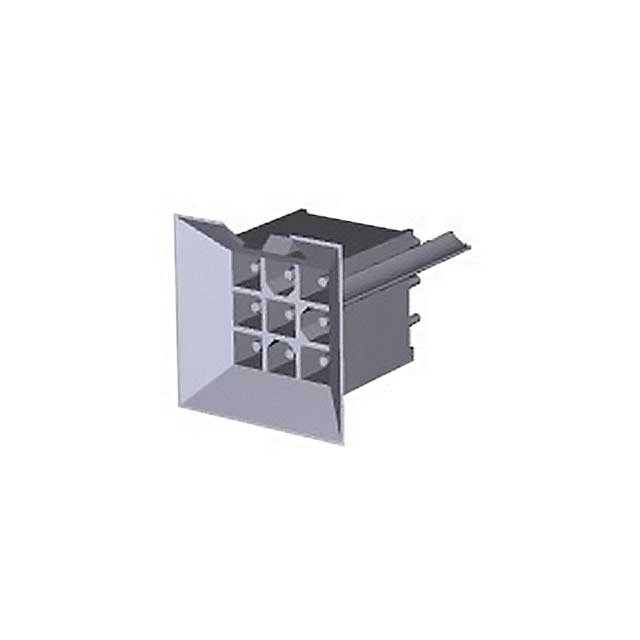

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-794130-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 9POS VERT MINI-UMNL
Datasheets:	1-794130-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16005 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16005 pcs

Reference Price (In US Dollars)

200 pcs: $2.28

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.28

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-794130-1

Part Number	1-794130-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 9POS VERT MINI-UMNL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16005 pcs	Data sheet	1-794130-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Universal MATE-N-LOK	Row Spacing - Mating	0.163" (4.14mm)
Pitch - Mating	0.163" (4.14mm)	Packaging	Bulk
Overall Contact Length	-	Operating Temperature	-55°C ~ 105°C
Number of Rows	3	Number of Positions Loaded	All
Number of Positions	9	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	-	Insulation Color	White
Ingress Protection	-	Features	Board Guide
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 9 position 0.163" (4.14mm)
Current Rating	9.5A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	-
Contact Length - Post	-	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	General Purpose
