1-770971-1

Agastat Relays / TE Connectivity

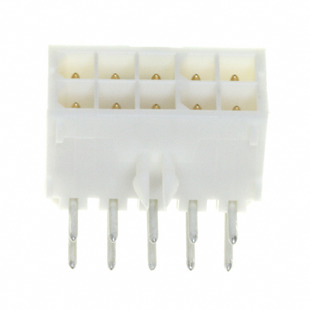

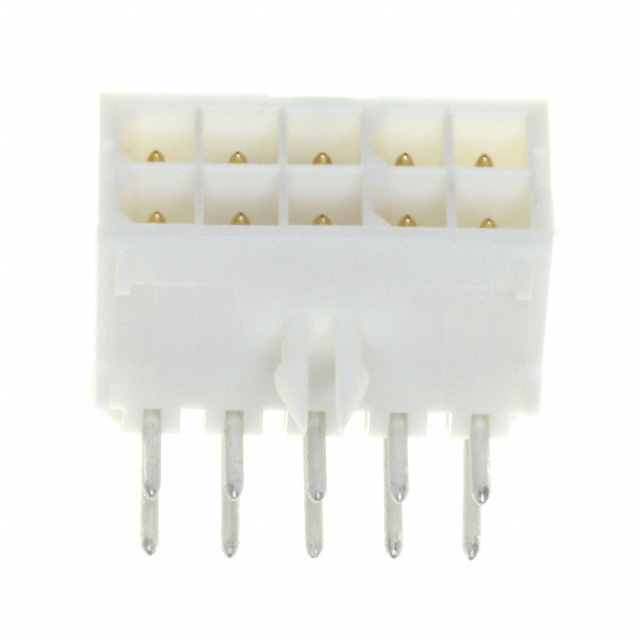

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-770971-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HDR 10POS R/A DUAL .163 AU
Datasheets:	1-770971-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14141 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14141 pcs

Reference Price (In US Dollars)

1 pcs: $2.633

10 pcs: $2.523

100 pcs: $2.084

500 pcs: $1.755

1000 pcs: $1.536

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.633

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-770971-1

Part Number	1-770971-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HDR 10POS R/A DUAL .163 AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14141 pcs	Data sheet	1-770971-1.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Universal MATE-N-LOK	Row Spacing - Mating	0.163" (4.14mm)
Pitch - Mating	0.163" (4.14mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	17709711 A33347
Operating Temperature	-20°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.386" (9.80mm)
Insulation Color	White	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.163" (4.14mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.145" (3.68mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose
