1-644753-4

Agastat Relays / TE Connectivity

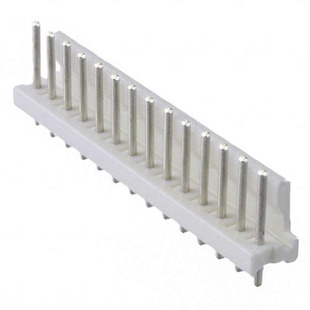

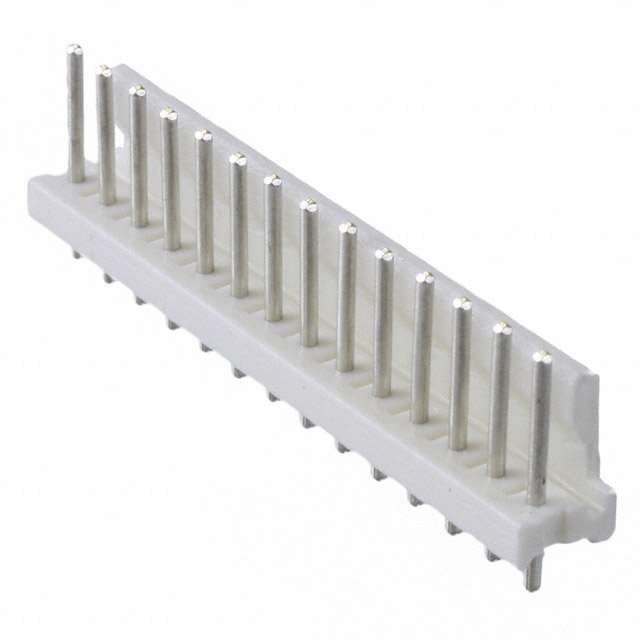

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-644753-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 14POS VERT .156 TIN
Datasheets:	1-644753-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	124955 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 124955 pcs

Reference Price (In US Dollars)

2000 pcs: $0.245

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.245

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-644753-4

Part Number	1-644753-4	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 14POS VERT .156 TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	124955 pcs	Data sheet	1-644753-4.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	MTA-156	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.700" (17.78mm)	Operating Temperature	-55°C ~ 105°C
Number of Rows	1	Number of Positions Loaded	All
Number of Positions	14	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic, Glass Filled
Insulation Height	0.425" (10.80mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 14 position 0.156" (3.96mm)
Current Rating	Varies by Wire Gauge	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Copper Alloy
Contact Length - Post	0.175" (4.45mm)	Contact Length - Mating	0.400" (10.16mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial
