1-292250-5

Agastat Relays / TE Connectivity

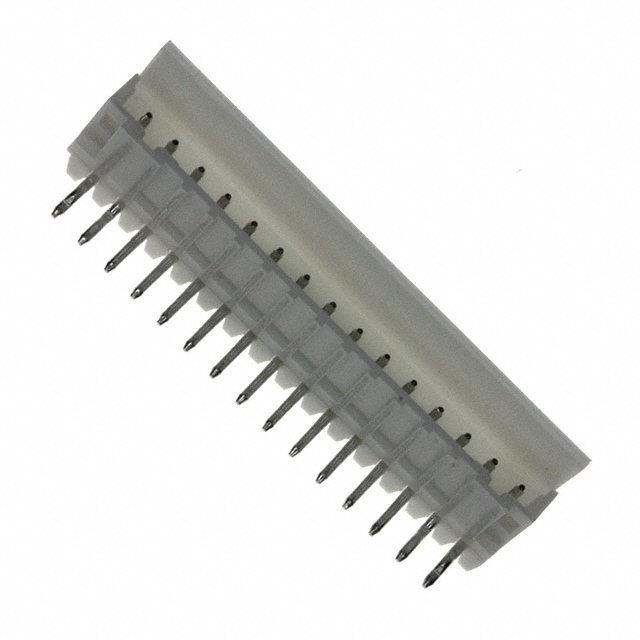

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-292250-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 15POS R/A PCB TIN
Datasheets:	1-292250-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	82656 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 82656 pcs

Reference Price (In US Dollars)

1 pcs: $0.441

10 pcs: $0.388

100 pcs: $0.334

500 pcs: $0.274

1000 pcs: $0.243

5000 pcs: $0.213

10000 pcs: $0.202

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.441

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-292250-5

Part Number	1-292250-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 15POS R/A PCB TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	82656 pcs	Data sheet	1-292250-5.pdf
Voltage Rating	125VAC	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CT	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A98776
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	15
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.228" (5.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 15 position 0.079" (2.00mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.165" (4.20mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
