1-292228-0

Agastat Relays / TE Connectivity

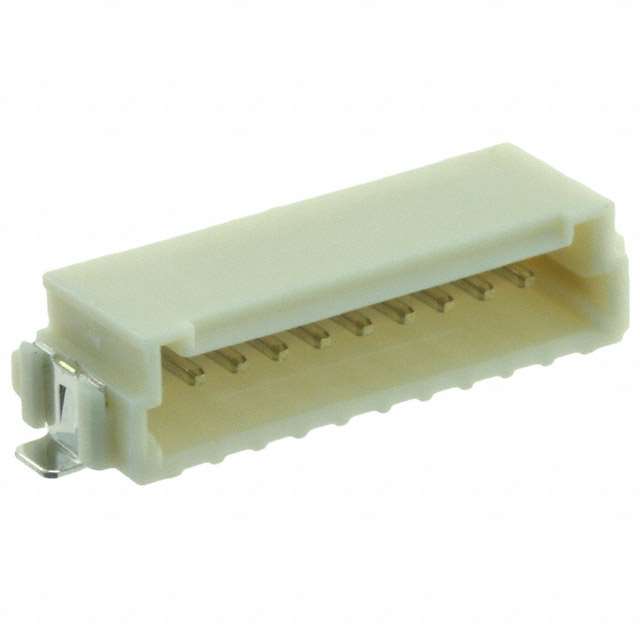

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-292228-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 10POS R/A SMD TIN
Datasheets:	1-292228-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	142660 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 142660 pcs

Reference Price (In US Dollars)

700 pcs: $0.249

1400 pcs: $0.221

2100 pcs: $0.208

3500 pcs: $0.201

4900 pcs: $0.194

17500 pcs: $0.18

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.249

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-292228-0

Part Number	1-292228-0	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 10POS R/A SMD TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	142660 pcs	Data sheet	1-292228-0.pdf
Voltage Rating	50VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini CT	Row Spacing - Mating	-
Pitch - Mating	0.059" (1.50mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	1-292228-0-ND 12922280 A101015TR
Operating Temperature	-30°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA6T), Nylon 6T, Glass Filled	Insulation Height	0.193" (4.90mm)
Insulation Color	Beige	Ingress Protection	-
Features	Solder Retention	Fastening Type	Detent Lock
Detailed Description	Connector Header Surface Mount, Right Angle 10 position 0.059" (1.50mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	0.094" (2.40mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
