1-284041-2

Agastat Relays / TE Connectivity

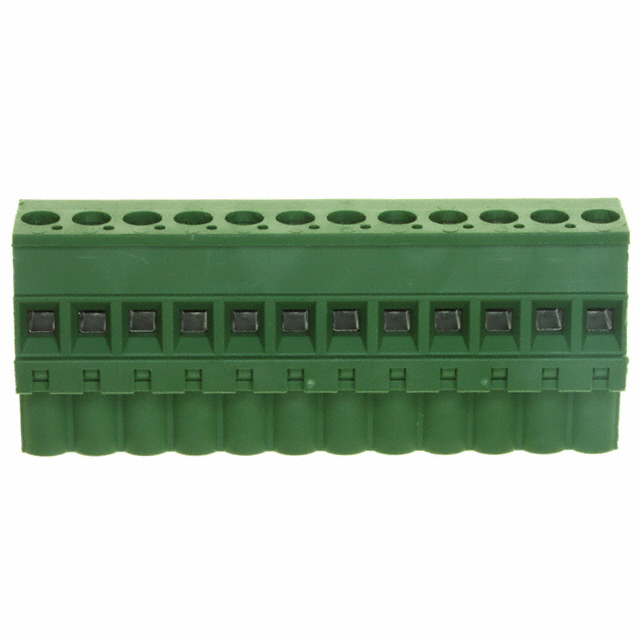

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-284041-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	TERM BLOCK PLUG 12POS 5.08MM
Datasheets:	1.1-284041-2.pdf 2.1-284041-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8007 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8007 pcs

Reference Price (In US Dollars)

1 pcs: $4.172

10 pcs: $3.672

25 pcs: $3.464

50 pcs: $3.297

100 pcs: $3.234

250 pcs: $2.817

500 pcs: $2.713

1000 pcs: $2.608

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.172

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-284041-2

Part Number	1-284041-2	Manufacturer	Agastat Relays / TE Connectivity
Description	TERM BLOCK PLUG 12POS 5.08MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8007 pcs	Data sheet	1.1-284041-2.pdf 2.1-284041-2.pdf
Wire Strip Length	6-7.5mm	Wire Gauge or Range - mm²	0.05-3mm²
Wire Gauge or Range - AWG	12-30 AWG	Voltage - UL	300V
Type	Plug, Female Sockets	Torque - Screw	0.79 Nm (7.0 Lb-In)
Termination Style	Screw - Rising Cage Clamp	Series	Buchanan
Screw Size	M3	Positions Per Level	12
Plug Wire Entry	270°	Pitch	0.200" (5.08mm)
Packaging	Bulk	Other Names	12840412 A98134
Operating Temperature	-40°C ~ 110°C	Number of Positions	12
Number of Levels	1	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	21 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Height	0.984" (25.00mm)	Ingress Protection	-
Housing Material	Polyamide (PA66), Nylon 6/6	Header Orientation	-
Features	Retention Latches (Non-Wire Side)	Detailed Description	12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 270° Free Hanging (In-Line)
Current - UL	15A	Current - IEC	-
Contact Tail Length	-	Contact Mating Finish	Tin
Contact Material	Phosphor Bronze	Color	Green
