1-2013325-6

Agastat Relays / TE Connectivity

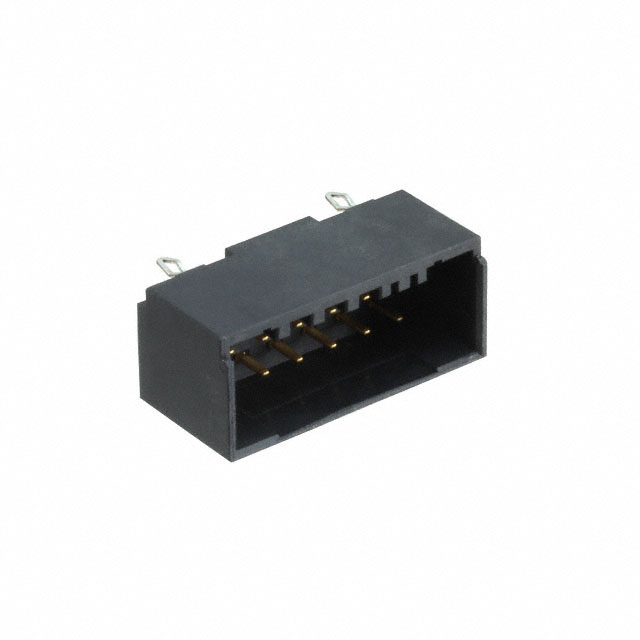

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-2013325-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DYNAMIC 1900D HDR ASSY V-TYPE 12
Datasheets:	1-2013325-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25611 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 25611 pcs

Reference Price (In US Dollars)

1 pcs: $1.264

17 pcs: $1.214

34 pcs: $1.113

51 pcs: $1.062

102 pcs: $1.011

255 pcs: $0.885

510 pcs: $0.86

1003 pcs: $0.733

2516 pcs: $0.683

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.264

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-2013325-6

Part Number	1-2013325-6	Manufacturer	Agastat Relays / TE Connectivity
Description	DYNAMIC 1900D HDR ASSY V-TYPE 12	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25611 pcs	Data sheet	1-2013325-6.pdf
Voltage Rating	150V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-1900	Row Spacing - Mating	0.130" (3.30mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A125859
Operating Temperature	-30°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height	0.490" (12.44mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole 12 position 0.138" (3.50mm)
Current Rating	4A	Contact Type	Tab
Contact Shape	Rectangular	Contact Material	Copper Alloy
Contact Length - Post	0.120" (3.05mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	General Purpose, Industrial
