Agastat Relays / TE Connectivity

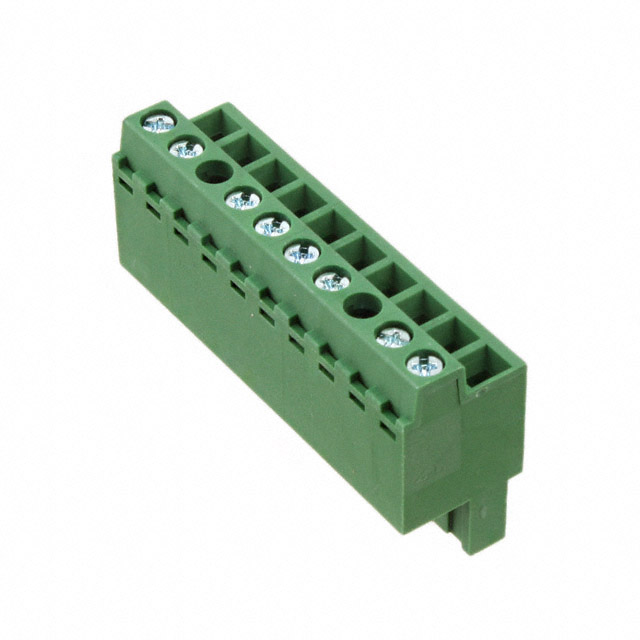

| Part Number | 1-1986300-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 10POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2746 pcs | Data sheet | 1-1986300-0.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-2mm² |
| Wire Gauge or Range - AWG | 14-24 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.51 Nm (4.5 Lb-In) |
| Termination Style | Screw - Pressure Clip | Series | - |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | 180° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 119863000 A101143 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.587" (14.91mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) | Current - UL | 16A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Green |
