1-1981458-6

Agastat Relays / TE Connectivity

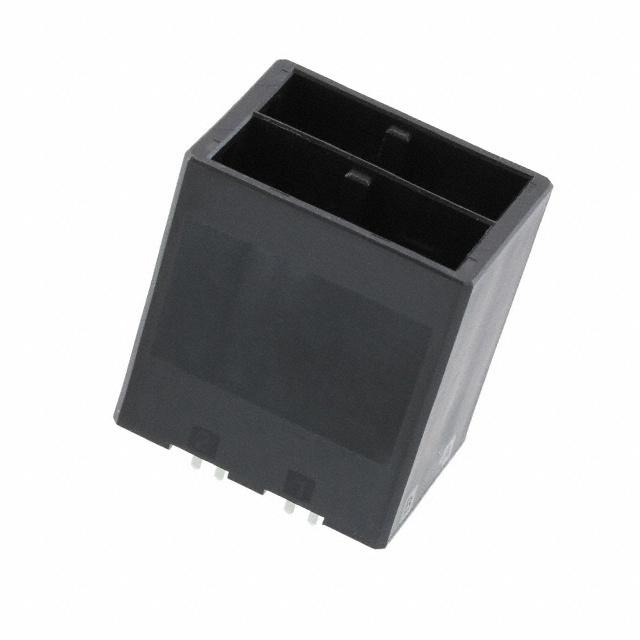

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1981458-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DYNAMIC D-5 V-HDR ASSY 4P AG XX
Datasheets:	1-1981458-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4058 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4058 pcs

Reference Price (In US Dollars)

1 pcs: $8.742

15 pcs: $7.892

30 pcs: $7.561

60 pcs: $7.089

105 pcs: $6.853

255 pcs: $6.474

510 pcs: $6.285

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$8.742

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1981458-6

Part Number	1-1981458-6	Manufacturer	Agastat Relays / TE Connectivity
Description	DYNAMIC D-5 V-HDR ASSY 4P AG XX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4058 pcs	Data sheet	1-1981458-6.pdf
Voltage Rating	630V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-5200	Row Spacing - Mating	0.400" (10.16mm)
Pitch - Mating	0.400" (10.16mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A118574
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	25 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Polyester, Glass Filled	Insulation Height	1.156" (29.36mm)
Insulation Color	Black	Ingress Protection	IP20
Features	Board Lock	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 4 position 0.400" (10.16mm)	Current Rating	30A
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.150" (3.81mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Silver	Connector Type	Header
Applications	General Purpose, Industrial
