1-1969730-4

Agastat Relays / TE Connectivity

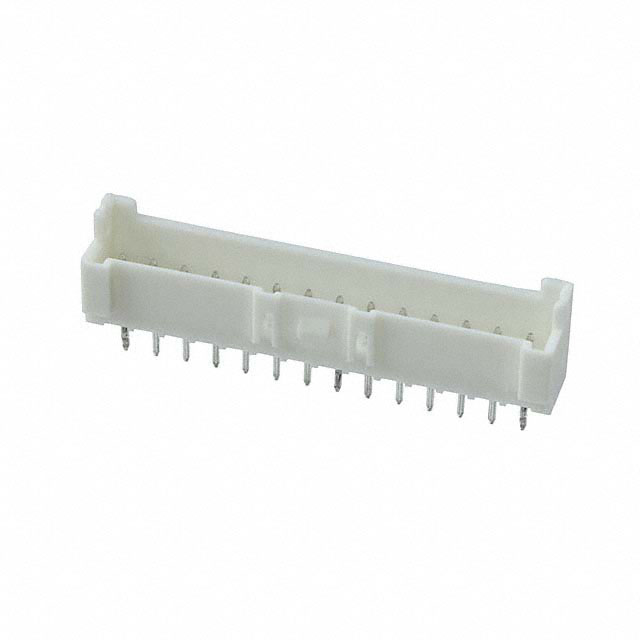

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1969730-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	EP2.5 SHROUDED HDR ASSY 14P VE
Datasheets:	1-1969730-4.pdf
RoHs Status	Not applicable / Not applicable
Stock Condition	141757 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 141757 pcs

Reference Price (In US Dollars)

1 pcs: $0.253

10 pcs: $0.238

100 pcs: $0.183

500 pcs: $0.159

1000 pcs: $0.131

5000 pcs: $0.115

10000 pcs: $0.107

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.253

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1969730-4

Part Number	1-1969730-4	Manufacturer	Agastat Relays / TE Connectivity
Description	EP2.5 SHROUDED HDR ASSY 14P VE	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	141757 pcs	Data sheet	1-1969730-4.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Economy Power 2.5	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A125447
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Not applicable / Not applicable
Insulation Material	Thermoplastic	Insulation Height	0.346" (8.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 14 position 0.098" (2.50mm)	Current Rating	4.2A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	0.141" (3.60mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
