1-1747277-4

Agastat Relays / TE Connectivity

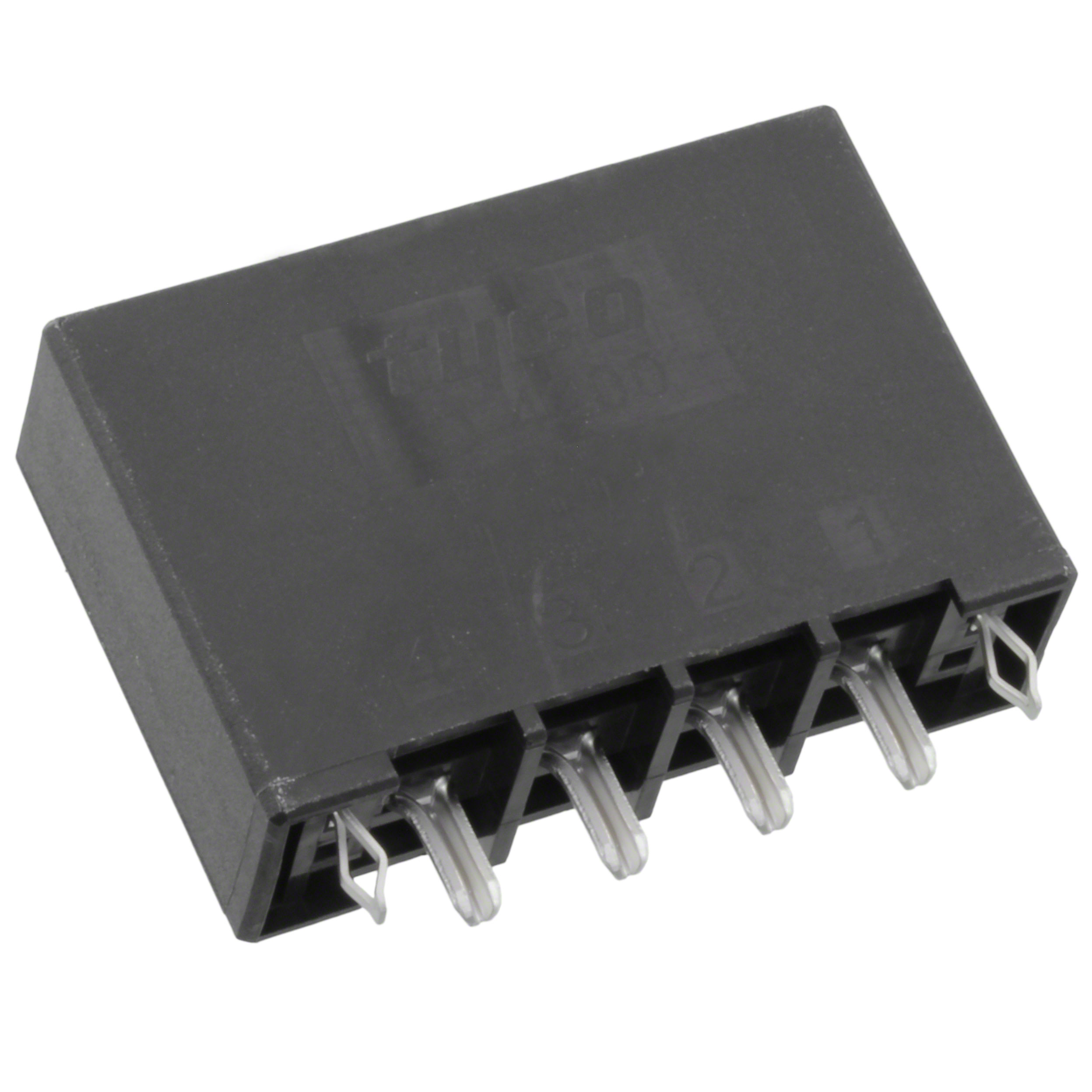

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1747277-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DYNAMIC D4200 V-HDR ASSY 3P/X
Datasheets:	1-1747277-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24496 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24496 pcs

Reference Price (In US Dollars)

1 pcs: $1.467

13 pcs: $1.408

26 pcs: $1.291

52 pcs: $1.232

104 pcs: $1.174

260 pcs: $1.027

507 pcs: $0.998

1001 pcs: $0.851

2509 pcs: $0.792

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.467

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1747277-4

Part Number	1-1747277-4	Manufacturer	Agastat Relays / TE Connectivity
Description	DYNAMIC D4200 V-HDR ASSY 3P/X	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24496 pcs	Data sheet	1-1747277-4.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-4200	Row Spacing - Mating	-
Pitch - Mating	0.250" (6.35mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A120276
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	23 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Polyester, Glass Filled	Insulation Height	0.937" (23.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 4 position 0.250" (6.35mm)	Current Rating	-
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.150" (3.81mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial
