1-1634688-4

Agastat Relays / TE Connectivity

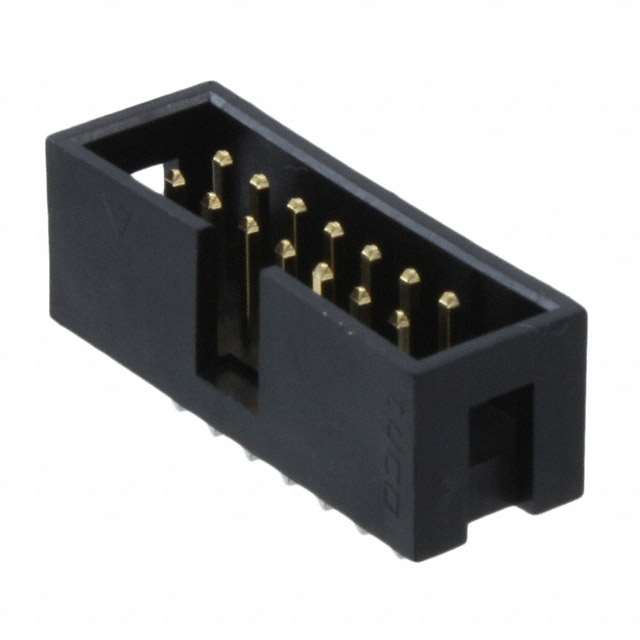

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1634688-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 14POS .100 VERT GOLD
Datasheets:	1-1634688-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5785 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5785 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1634688-4

Part Number	1-1634688-4	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 14POS .100 VERT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5785 pcs	Data sheet	1-1634688-4.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	116346884 A104860
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA6T), Nylon 6T
Insulation Height	0.343" (8.71mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 14 position 0.100" (2.54mm)
Current Rating	3A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.126" (3.20mm)	Contact Length - Mating	0.228" (5.80mm)
Contact Finish Thickness - Post	80.0µin (2.03µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
