1-1586768-0

Agastat Relays / TE Connectivity

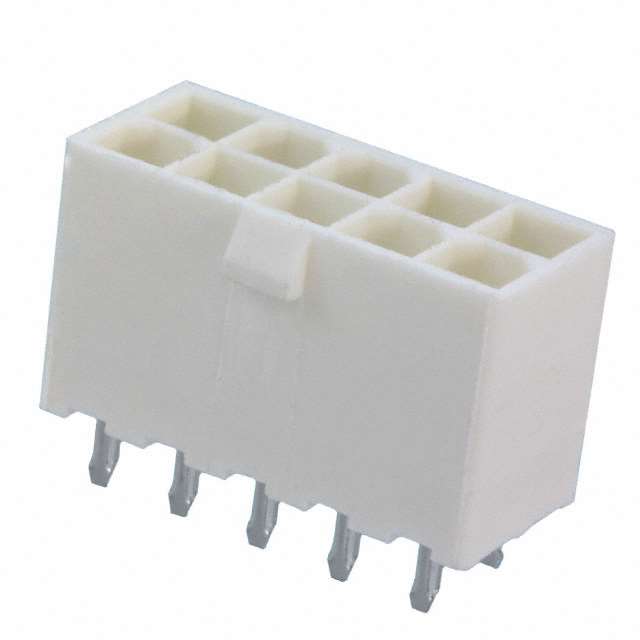

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1586768-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 10POS VERT DL TIN
Datasheets:	1-1586768-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	94575 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 94575 pcs

Reference Price (In US Dollars)

1 pcs: $0.405

10 pcs: $0.357

255 pcs: $0.28

510 pcs: $0.252

1020 pcs: $0.224

5100 pcs: $0.196

10200 pcs: $0.186

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.405

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1586768-0

Part Number	1-1586768-0	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 10POS VERT DL TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	94575 pcs	Data sheet	1-1586768-0.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	VAL-U-LOK	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Operating Temperature	-40°C ~ 105°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	10	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-2
Mated Stacking Heights	-	Manufacturer Standard Lead Time	36 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.504" (12.80mm)	Insulation Color	White
Ingress Protection	-	Features	Glow Wire Compliant
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 10 position 0.165" (4.20mm)
Current Rating	9A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Lighting
