1-1565994-3

Agastat Relays / TE Connectivity

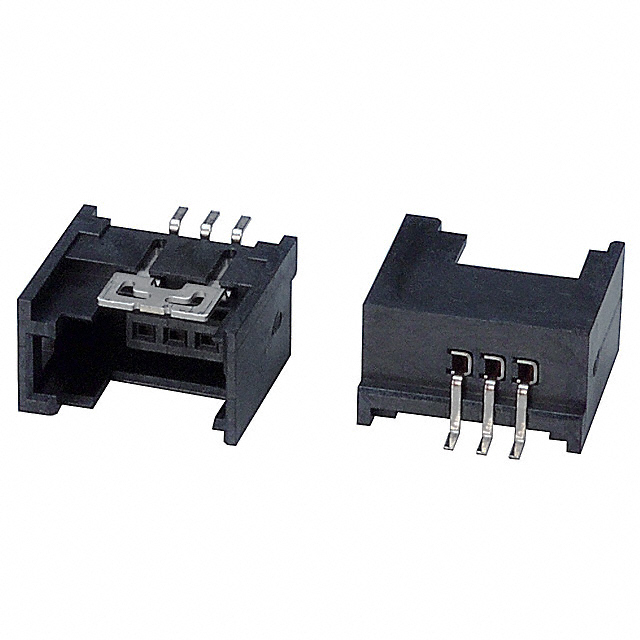

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1565994-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 3POS HORIZONAL SMD
Datasheets:	1-1565994-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57234 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 57234 pcs

Reference Price (In US Dollars)

4500 pcs: $0.558

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.558

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1565994-3

Part Number	1-1565994-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 3POS HORIZONAL SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57234 pcs	Data sheet	1-1565994-3.pdf
Voltage Rating	32VDC	Termination	Solder
Style	Board to Cable/Wire	Series	RITS
Row Spacing - Mating	-	Pitch - Mating	0.079" (2.00mm)
Packaging	Tape & Reel (TR)	Other Names	A29176TR
Operating Temperature	-30°C ~ 75°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.303" (7.70mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	3 Position Header Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold	Current Rating	-
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
