1-1554590-5

Agastat Relays / TE Connectivity

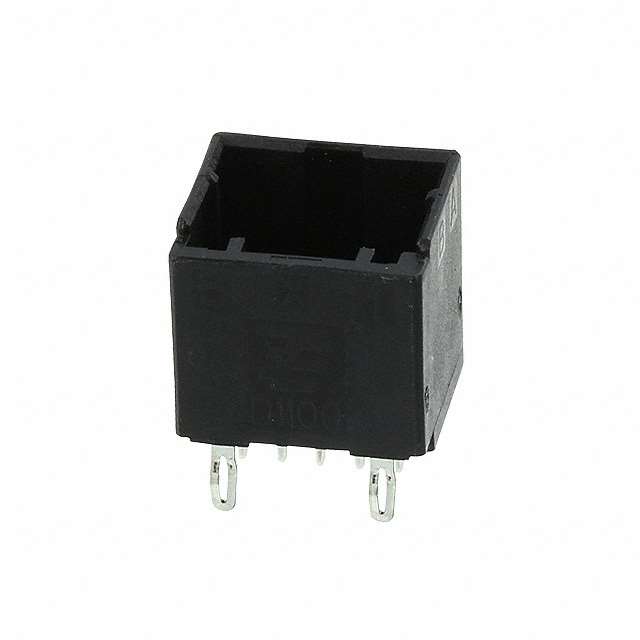

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1554590-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DYNAMIC 1100D HDR ASSY V 10PX BL
Datasheets:	1-1554590-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	102551 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 102551 pcs

Reference Price (In US Dollars)

1750 pcs: $0.318

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.318

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1554590-5

Part Number	1-1554590-5	Manufacturer	Agastat Relays / TE Connectivity
Description	DYNAMIC 1100D HDR ASSY V 10PX BL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	102551 pcs	Data sheet	1-1554590-5.pdf
Voltage Rating	125V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-1100	Row Spacing - Mating	0.130" (3.30mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	A120259
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Polyester, Glass Filled	Insulation Height	0.490" (12.44mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 10 position 0.079" (2.00mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial
