1-147738-3

Agastat Relays / TE Connectivity

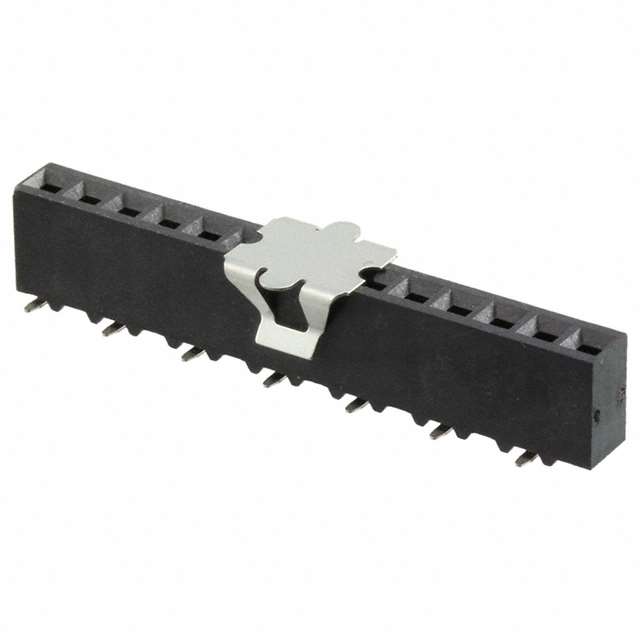

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-147738-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RCPT 14POS VERT .100 SMD
Datasheets:	1-147738-3.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6497 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6497 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-147738-3

Part Number	1-147738-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RCPT 14POS VERT .100 SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6497 pcs	Data sheet	1-147738-3.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Series	AMPMODU Mod IV
Row Spacing - Mating	-	Pitch - Mating	0.100" (2.54mm)
Packaging	Tube	Other Names	1-147738-3-ND A114789
Operating Temperature	-65°C ~ 125°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.265" (6.73mm)	Insulation Color	Black
Ingress Protection	-	Features	Pick and Place
Fastening Type	Push-Pull	Detailed Description	14 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Current Rating	2A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Receptacle, Bottom or Top Entry
Applications	-
