1-147323-3

Agastat Relays / TE Connectivity

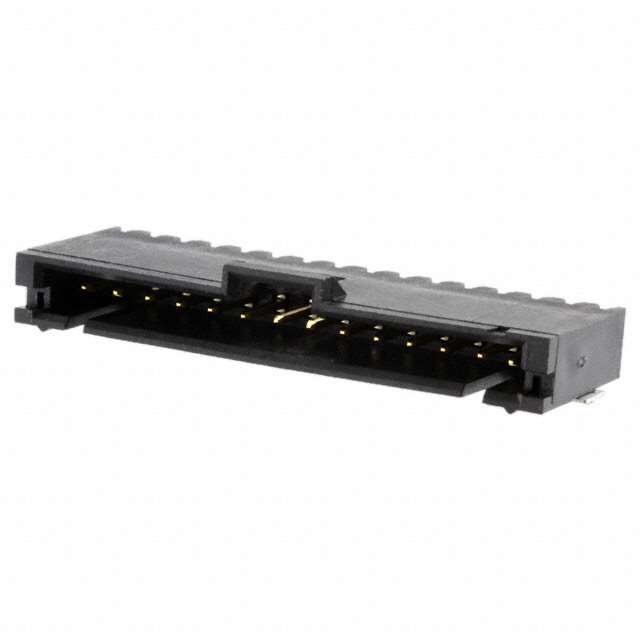

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-147323-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER IDC 14POS R/A SMD
Datasheets:	1-147323-3.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	36328 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36328 pcs

Reference Price (In US Dollars)

600 pcs: $1.051

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.051

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-147323-3

Part Number	1-147323-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER IDC 14POS R/A SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	36328 pcs	Data sheet	1-147323-3.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU MTE	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	A108992TR
Operating Temperature	-65°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Thermoplastic	Insulation Height	0.200" (5.08mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock, Keying Slot, Solder Retention	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount, Right Angle 14 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
