1-1318301-2

Agastat Relays / TE Connectivity

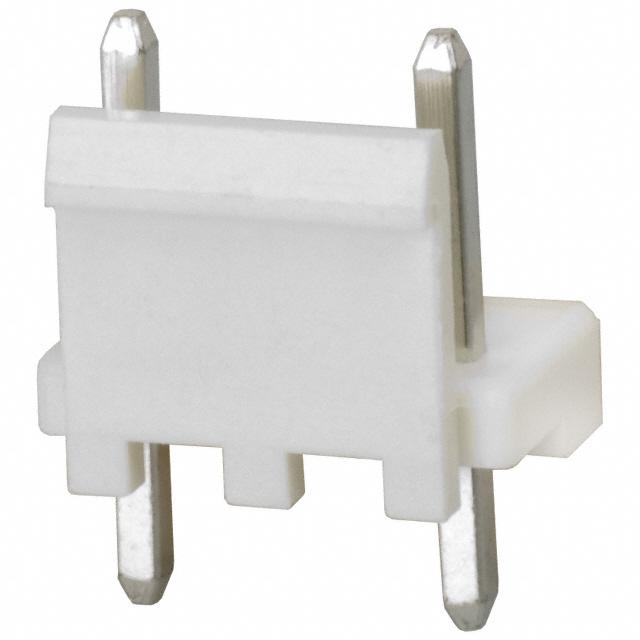

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1318301-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER .312 VERT 2POS TIN
Datasheets:	1.1-1318301-2.pdf 2.1-1318301-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	228013 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 228013 pcs

Reference Price (In US Dollars)

1 pcs: $0.137

40 pcs: $0.11

120 pcs: $0.09

520 pcs: $0.077

1000 pcs: $0.064

5000 pcs: $0.055

10000 pcs: $0.052

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.137

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1318301-2

Part Number	1-1318301-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER .312 VERT 2POS TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	228013 pcs	Data sheet	1.1-1318301-2.pdf 2.1-1318301-2.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Tube
Overall Contact Length	0.567" (14.40mm)	Other Names	113183012 A30521
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	2	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.118" (3.00mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 3 position 0.156" (3.96mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.146" (3.70mm)
Contact Length - Mating	0.303" (7.70mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
