1-103673-3

Agastat Relays / TE Connectivity

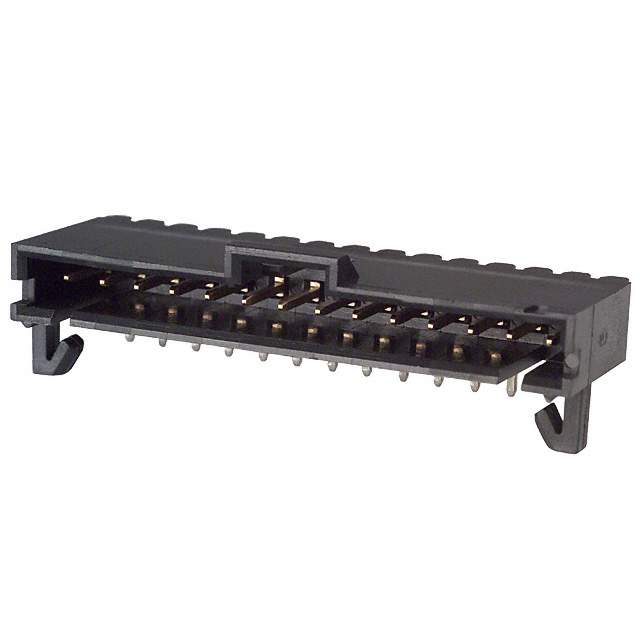

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-103673-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER RT/A .100 14POS 15AU
Datasheets:	1-103673-3.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	49511 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 49511 pcs

Reference Price (In US Dollars)

1008 pcs: $0.643

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.643

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-103673-3

Part Number	1-103673-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER RT/A .100 14POS 15AU	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	49511 pcs	Data sheet	1-103673-3.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU MTE	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	1-103673-3-ND A28606
Operating Temperature	-65°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Thermoplastic	Insulation Height	0.200" (5.08mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock, Keying Slot	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
