90584-1314

Affinity Medical Technologies - a Molex company

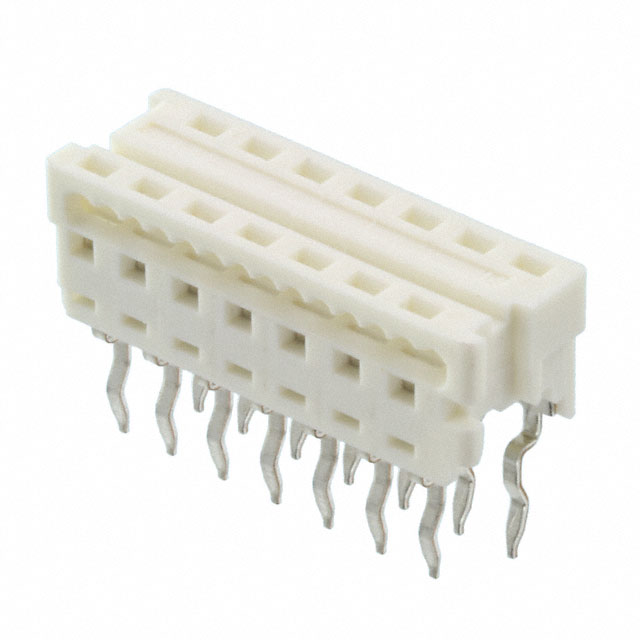

Image may be representation. See specifications for product details.

Product Overview

Part Number:	90584-1314
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT IDT 14POS 1.27MM TIN
Datasheets:	1.90584-1314.pdf 2.90584-1314.pdf 3.90584-1314.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52744 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52744 pcs

Reference Price (In US Dollars)

1 pcs: $0.654

10 pcs: $0.593

25 pcs: $0.557

50 pcs: $0.532

100 pcs: $0.508

250 pcs: $0.46

500 pcs: $0.424

1000 pcs: $0.363

2500 pcs: $0.339

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.654

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 90584-1314

Part Number	90584-1314	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT IDT 14POS 1.27MM TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52744 pcs	Data sheet	1.90584-1314.pdf 2.90584-1314.pdf 3.90584-1314.pdf
Wire Gauge	26-28 AWG, Stranded	Series	Picoflex 90584
Row Spacing	0.100" (2.54mm)	Packaging	Tube
Other Names	090584-1314 090584-1314-E 0905841314 0905841314-E 90584-1314-E 90584-1314-ND 905841314 905841314-E WM19245	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole, Press-Fit	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Closed End	Detailed Description	14 Position Ribbon Cable, DIP Header Connector White IDC 26-28 AWG, Stranded Through Hole, Press-Fit
Contact Finish Thickness	80.0µin (2.03µm)	Contact Finish	Tin
Connector Type	Ribbon Cable, DIP Header	Color	White
Cable Termination	IDC	Cable Pitch	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)
