Affinity Medical Technologies - a Molex company

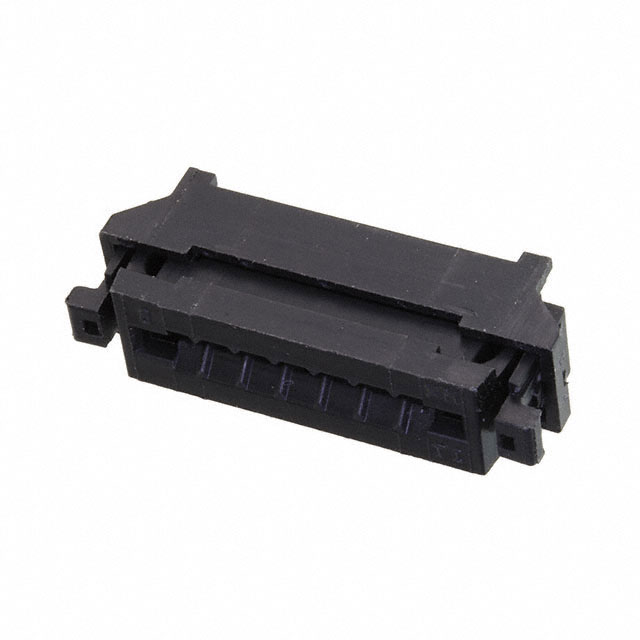

| Part Number | 90500-4007 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC 7POS 2.54MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3544 pcs | Data sheet | 90500-4007.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Series | 90500 | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 090500-4007 090500-4007-E 0905004007 0905004007-E 90500-4007-E 90500-4007-ND 905004007 905004007-E WM6589 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 7 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 50 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Housing Color | Black |
| Height Above Board | 0.285" (7.24mm) | Flat Flex Type | FFC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 7 Position FFC Connector Contacts, Top and Bottom 0.100" (2.54mm) Through Hole, Right Angle | Current Rating | 2.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Notched | Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Color | Black |
