90122-0800

Affinity Medical Technologies - a Molex company

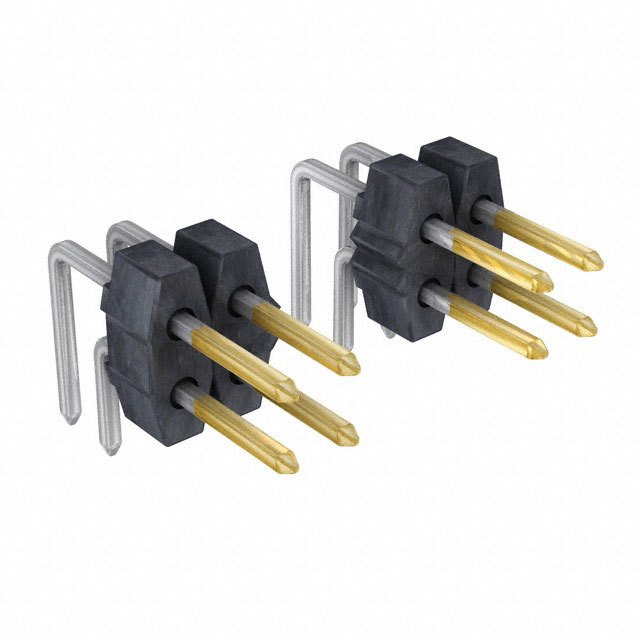

Image may be representation. See specifications for product details.

Product Overview

Part Number:	90122-0800
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 80POS .100" R/A GOLD
Datasheets:	90122-0800.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7271 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7271 pcs

Reference Price (In US Dollars)

1 pcs: $4.039

10 pcs: $3.67

25 pcs: $3.578

50 pcs: $3.303

100 pcs: $3.12

250 pcs: $2.844

500 pcs: $2.661

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.039

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 90122-0800

Part Number	90122-0800	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 80POS .100" R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7271 pcs	Data sheet	90122-0800.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid III 90122	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	090122-0800 090122-0800-E 0901220800 0901220800-E 90122-0800-E 901220800 901220800-E WM50030-80 WM8192 WM8192-ND
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	80
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.242" (6.14mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 80 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.114" (2.90mm)
Contact Length - Mating	0.266" (6.75mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose
