87760-2616

Affinity Medical Technologies - a Molex company

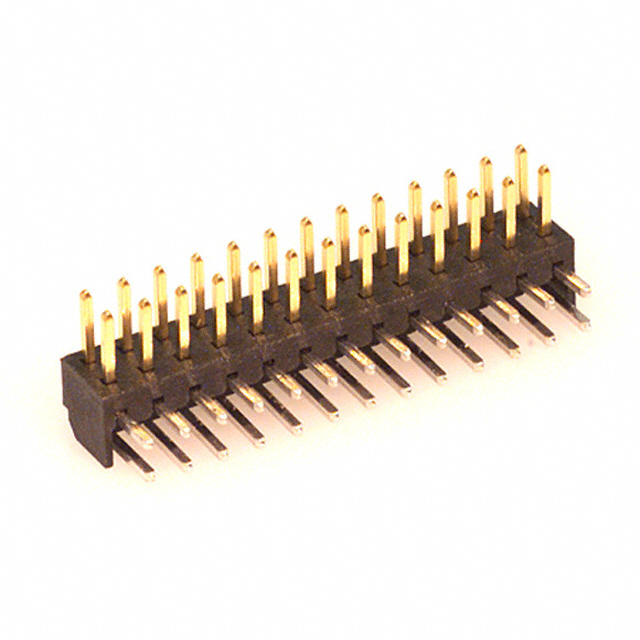

Image may be representation. See specifications for product details.

Product Overview

Part Number:	87760-2616
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 26POS 2MM R/A GOLD
Datasheets:	87760-2616.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51951 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51951 pcs

Reference Price (In US Dollars)

1 pcs: $0.654

10 pcs: $0.593

100 pcs: $0.508

500 pcs: $0.424

1000 pcs: $0.363

5000 pcs: $0.322

10000 pcs: $0.315

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.654

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 87760-2616

Part Number	87760-2616	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 26POS 2MM R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51951 pcs	Data sheet	87760-2616.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	Milli-Grid 87760	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0877602616 87760-2616-TR200 87760-2616-TR400 877602616 WM18623
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	23 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Insulation Height	0.169" (4.30mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.102" (2.60mm)
Contact Length - Mating	0.157" (4.00mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Telecommunications
