87368-1420

Affinity Medical Technologies - a Molex company

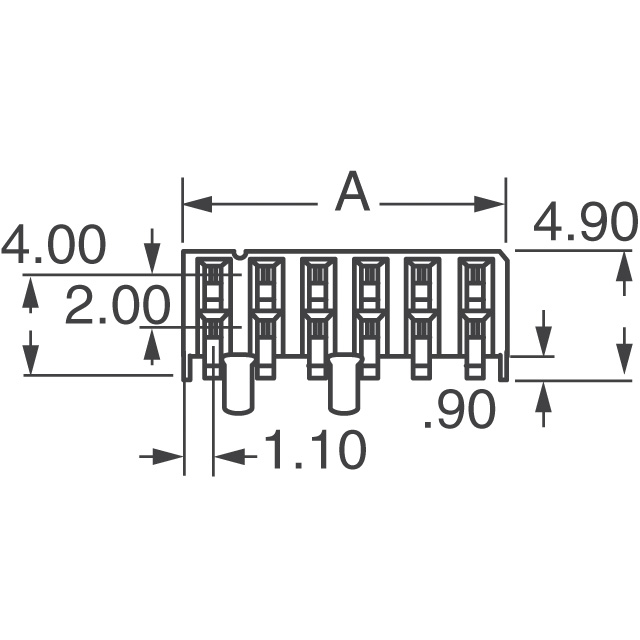

Image may be representation. See specifications for product details.

Product Overview

Part Number:	87368-1420
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 14POS 2MM SMD GOLD
Datasheets:	87368-1420.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6912 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6912 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 87368-1420

Part Number	87368-1420	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 14POS 2MM SMD GOLD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6912 pcs	Data sheet	87368-1420.pdf
Voltage Rating	125VAC	Termination	Solder
Style	Board to Board or Cable	Series	Milli-Grid 87368
Row Spacing - Mating	0.079" (2.00mm)	Pitch - Mating	0.079" (2.00mm)
Packaging	Tube	Other Names	087368-1420 087368-1420-E 0873681420 0873681420-E 873-68-1420-P 87368-1420-E 87368-1420-TB37 873681420 873681420-E WM18182
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	-
Insulation Height	0.193" (4.90mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Guide
Fastening Type	Push-Pull	Detailed Description	14 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
Current Rating	1A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	-
Contact Length - Post	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	Automotive, General Purpose, Telecommunications
