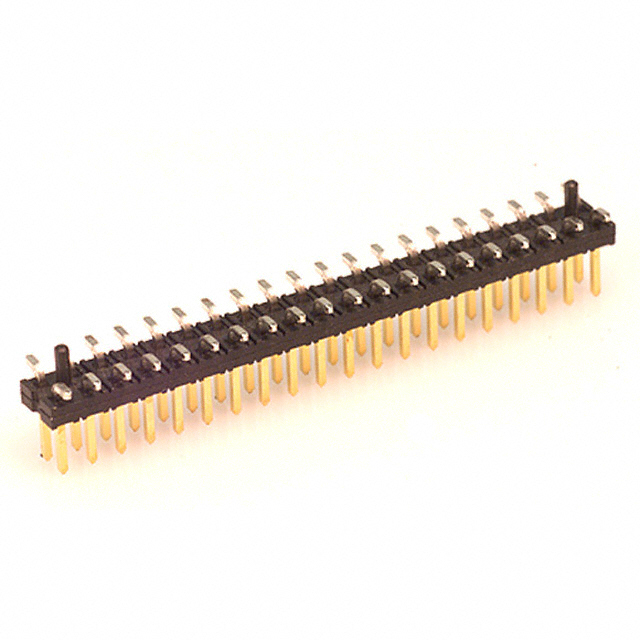

Part Number | 87267-4050 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | CONN HEADER 40POS 2MM VERT SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 6892 pcs | Data sheet | 87267-4050.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Cable/Wire | Shrouding | Unshrouded |
Series | Milli-Grid 87267 | Row Spacing - Mating | 0.079" (2.00mm) |
Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
Overall Contact Length | - | Other Names | 087267-4050 087267-4050-E 0872674050 0872674050-E 872-67-4050-P 87267-4050-E 87267-4050-TB13 872674050 872674050-E WM18174 |
Operating Temperature | - | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 40 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Guide |
Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 40 position 0.079" (2.00mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Length - Mating | 0.150" (3.81mm) |
Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
