87264-2250

Affinity Medical Technologies - a Molex company

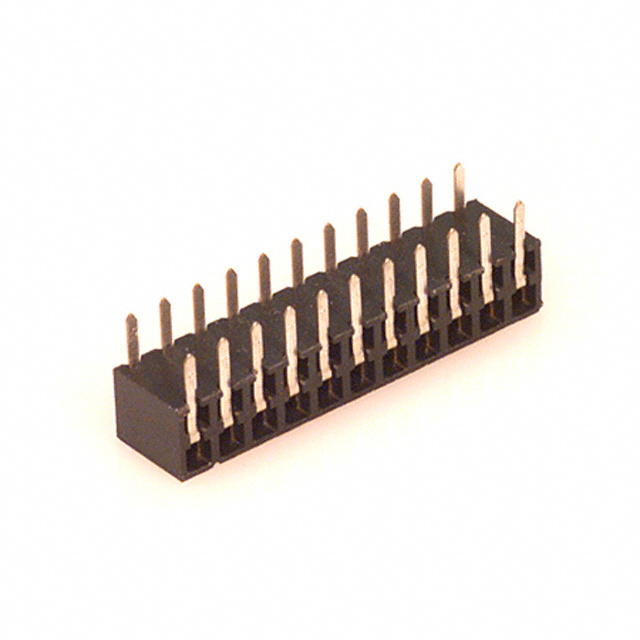

Image may be representation. See specifications for product details.

Product Overview

Part Number:	87264-2250
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 2MM 22POS SIDE ENTRY
Datasheets:	87264-2250.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5649 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5649 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 87264-2250

Part Number	87264-2250	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 2MM 22POS SIDE ENTRY	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5649 pcs	Data sheet	87264-2250.pdf
Voltage Rating	125VAC	Termination	Solder
Style	Board to Board or Cable	Series	Milli-Grid 87264
Row Spacing - Mating	0.079" (2.00mm)	Pitch - Mating	0.079" (2.00mm)
Packaging	Tube	Other Names	087264-2250 087264-2250-E 0872642250 0872642250-E 872-64-2250-P 87264-2250-E 872642250 872642250-E WM18143
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	22
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	-
Insulation Height	0.157" (4.00mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	22 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
Current Rating	1A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	-
Contact Length - Post	0.100" (2.54mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	Automotive, General Purpose, Telecommunications
