87049-3616

Affinity Medical Technologies - a Molex company

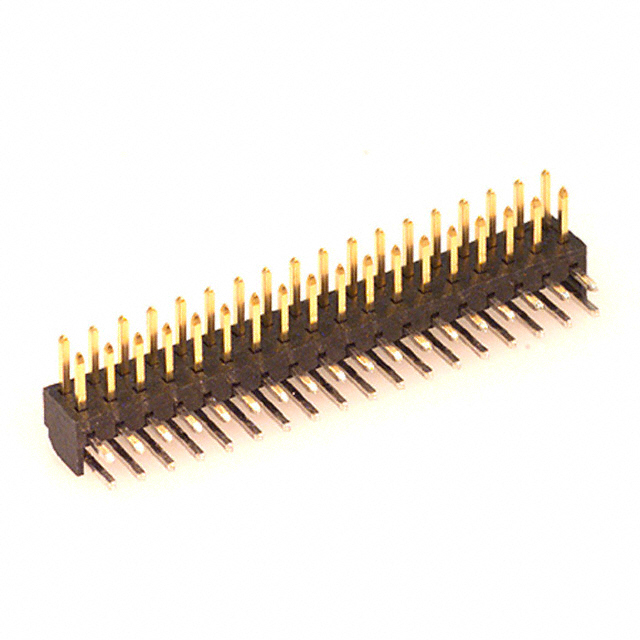

Image may be representation. See specifications for product details.

Product Overview

Part Number:	87049-3616
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 36POS 2MM R/A GOLD
Datasheets:	87049-3616.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	7012 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7012 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 87049-3616

Part Number	87049-3616	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 36POS 2MM R/A GOLD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	7012 pcs	Data sheet	87049-3616.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	Milli-Grid 87049	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	087049-3616 087049-3616-C 0870493616 0870493616-C 870-49-3616-P 87049-3616-C 87049-3616-TR300 870493616 870493616-C WM18128
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	36
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Insulation Height	0.169" (4.30mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 36 position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.102" (2.60mm)	Contact Length - Mating	0.157" (4.00mm)
Contact Finish Thickness - Post	74.8µin (1.90µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Telecommunications
