Affinity Medical Technologies - a Molex company
| Part Number | 71226-0625 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

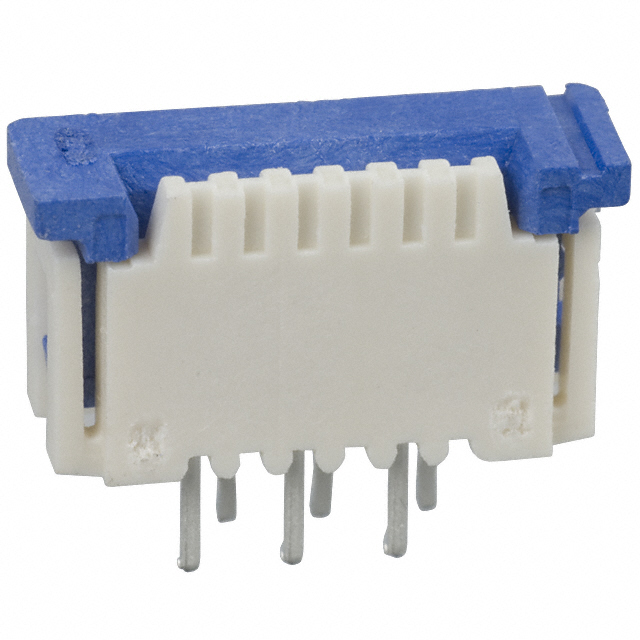

| Description | CONN FFC VERT 6POS 1.00MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4597 pcs | Data sheet | 71226-0625.pdf |
| Voltage Rating | 125V | Termination | Kinked Pin |
| Series | 71226 | Pitch | 0.039" (1.00mm) |
| Packaging | Tray | Other Names | 071226-0625 071226-0625-E 0712260625 0712260625-E 71226-0625-E 71226-0625-TR252 712260625 712260625-E A712260625 WM5301 |
| Operating Temperature | -20°C ~ 80°C | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 5 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Housing Color | Natural |
| Height Above Board | 0.236" (6.00mm) | Flat Flex Type | FFC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 6 Position FFC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 196.9µin (5.00µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Color | Blue |
