68301-1011

Affinity Medical Technologies - a Molex company

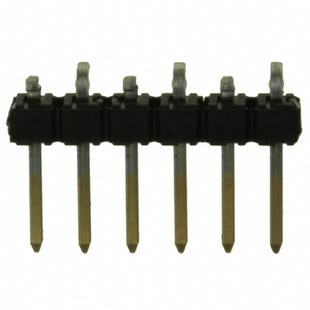

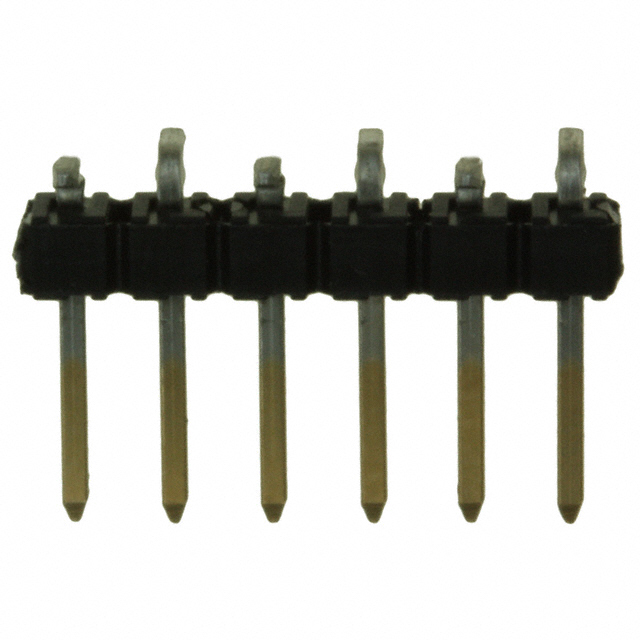

Image may be representation. See specifications for product details.

Product Overview

Part Number:	68301-1011
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 6POS .100" VERT 15AU
Datasheets:	68301-1011.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4112 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4112 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 68301-1011

Part Number	68301-1011	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 6POS .100" VERT 15AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4112 pcs	Data sheet	68301-1011.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 68301	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	068301-1011 068301-1011-E 0683011011 0683011011-E 68301-1011-E 68301-1011-TB33 68301-1011-TB35 683011011 683011011-E WM17446
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Insulation Height	0.090" (2.29mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 6 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Telecommunications
