54550-2694

Affinity Medical Technologies - a Molex company

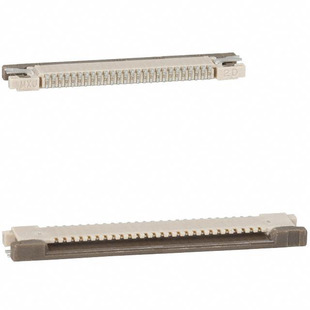

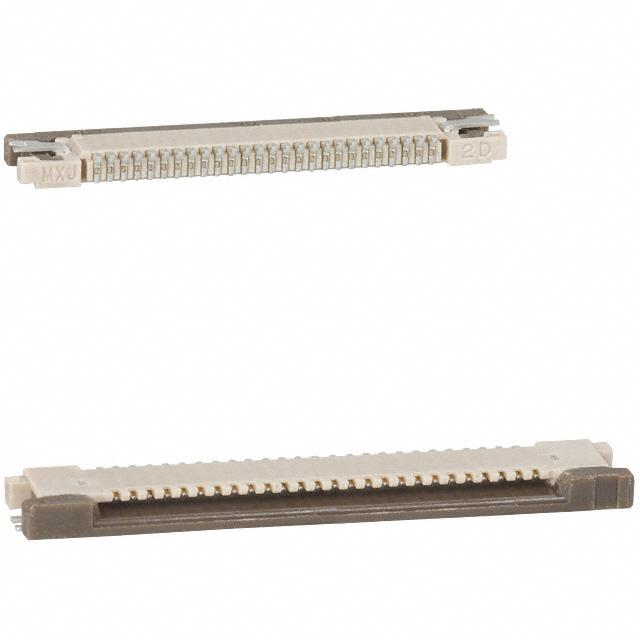

Image may be representation. See specifications for product details.

Product Overview

Part Number:	54550-2694
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC TOP 26POS 0.50MM R/A
Datasheets:	54550-2694.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5821 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5821 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 54550-2694

Part Number	54550-2694	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC TOP 26POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5821 pcs	Data sheet	54550-2694.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54550	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	054550-2694 0545502694
Operating Temperature	-20°C ~ 85°C	Number of Positions	26
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP)	Housing Color	-
Height Above Board	0.047" (1.20mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.28mm
Detailed Description	26 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle	Current Rating	0.5A
Contact Material	Phosphor Bronze	Contact Finish Thickness	8.00µin (0.203µm)
Contact Finish	Tin Bismuth	Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered	Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Color	-
