54393-1781

Affinity Medical Technologies - a Molex company

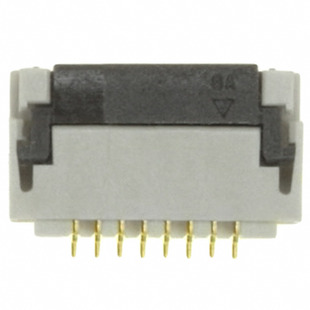

Image may be representation. See specifications for product details.

Product Overview

Part Number:	54393-1781
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 17POS 0.30MM R/A
Datasheets:	54393-1781.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14755 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14755 pcs

Reference Price (In US Dollars)

2000 pcs: $2.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.09

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 54393-1781

Part Number	54393-1781	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 17POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14755 pcs	Data sheet	54393-1781.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54393	Pitch	0.012" (0.30mm)
Packaging	Bulk	Other Names	054393-1781-C 0543931781 54393-1781-C WM2221
Operating Temperature	-20°C ~ 85°C	Number of Positions	17
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	11 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	-	Height Above Board	0.077" (1.95mm)
Flat Flex Type	FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.20mm	Detailed Description	17 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Phosphor Bronze
Contact Finish Thickness	8.00µin (0.203µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
