53780-0990

Affinity Medical Technologies - a Molex company

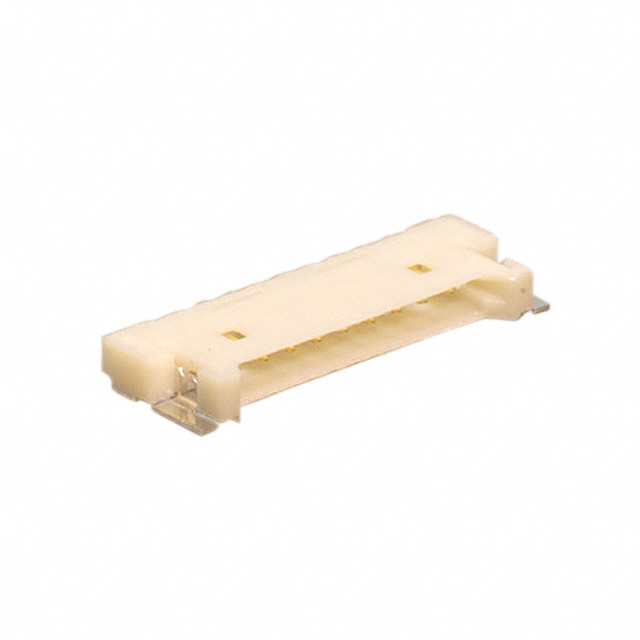

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53780-0990
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 9POS 1.25MM R/A SMD
Datasheets:	53780-0990.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6992 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6992 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53780-0990

Part Number	53780-0990	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 9POS 1.25MM R/A SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6992 pcs	Data sheet	53780-0990.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PanelMate 53780	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	053780-0990 053780-0990-C 0537800990 0537800990-C 53780-0990-C 537800990 537800990-C WM5505TR
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polyphenylene Sulfide (PPS)
Insulation Height	0.073" (1.85mm)	Insulation Color	Natural
Ingress Protection	-	Features	Solder Retention
Fastening Type	Detent Lock	Detailed Description	Connector Header Surface Mount, Right Angle 9 position 0.049" (1.25mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	0.102" (2.60mm)
Contact Finish Thickness - Post	118.1µin (3.00µm)	Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Telecommunications
