53398-0590

Affinity Medical Technologies - a Molex company

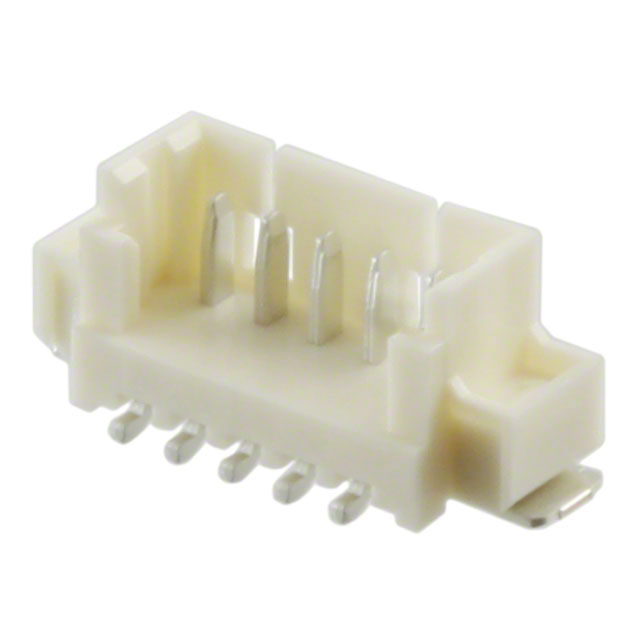

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53398-0590
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 5POS 1.25MM VERT SMD
Datasheets:	53398-0590.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5293 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5293 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53398-0590

Part Number	53398-0590	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 5POS 1.25MM VERT SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5293 pcs	Data sheet	53398-0590.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 3 Wall
Series	PicoBlade 53398	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	533-98-0590-P 53398-0590-P WM1767 WM1767-ND WM1767CT
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	-
Insulation Height	0.185" (4.70mm)	Insulation Color	Natural
Ingress Protection	-	Features	Solder Retention
Fastening Type	Detent Lock	Detailed Description	Connector Header Surface Mount 5 position 0.049" (1.25mm)
Current Rating	-	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	-
Contact Length - Post	-	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	-	Contact Finish - Mating	Tin-Lead
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical
