53261-0890

Affinity Medical Technologies - a Molex company

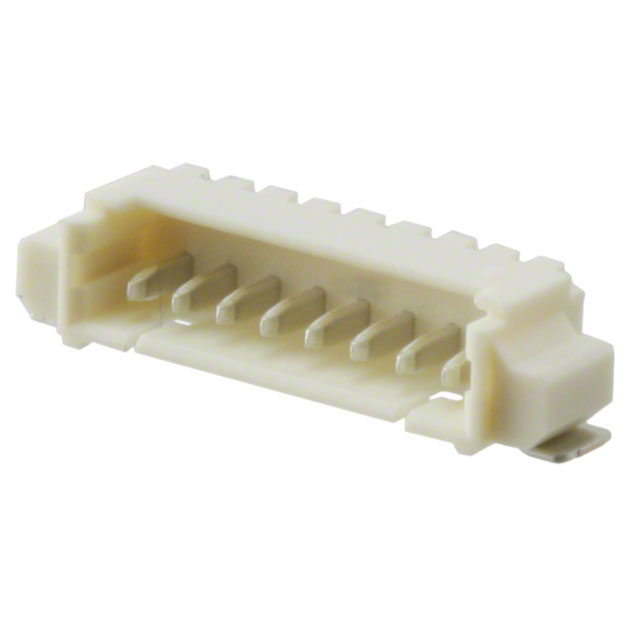

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53261-0890
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 8POS 1.25MM R/A SMD
Datasheets:	1.53261-0890.pdf 2.53261-0890.pdf 3.53261-0890.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	7081 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7081 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53261-0890

Part Number	53261-0890	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 8POS 1.25MM R/A SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	7081 pcs	Data sheet	1.53261-0890.pdf 2.53261-0890.pdf 3.53261-0890.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PicoBlade 53261	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	053261-0890 053261-0890-C 0532610890 0532610890-C 53261-0890-C 532610890 532610890-C WM1759TR
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polyamide (PA46), Nylon 4/6
Insulation Height	0.134" (3.40mm)	Insulation Color	Natural
Ingress Protection	-	Features	Solder Retention
Fastening Type	Detent Lock	Detailed Description	Connector Header Surface Mount, Right Angle 8 position 0.049" (1.25mm)
Current Rating	-	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	-	Contact Finish - Mating	Tin-Lead
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical
