53253-0970

Affinity Medical Technologies - a Molex company

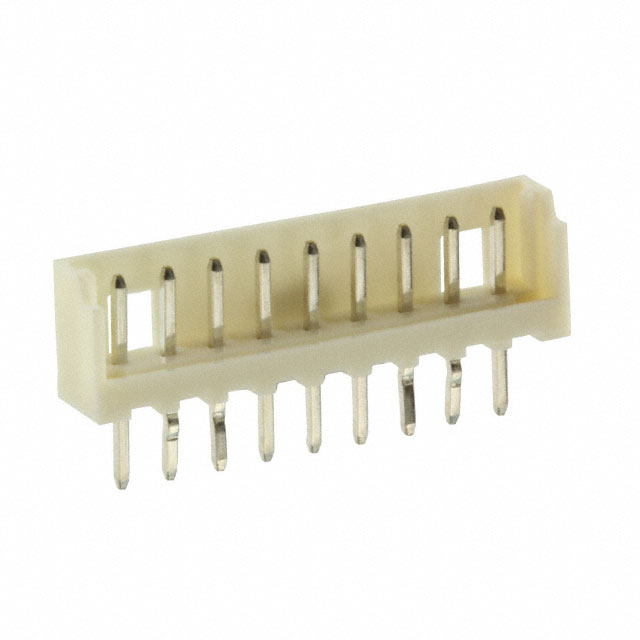

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53253-0970
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 9POS 2MM VERT TIN
Datasheets:	53253-0970.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	203844 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 203844 pcs

Reference Price (In US Dollars)

1 pcs: $0.155

10 pcs: $0.144

100 pcs: $0.111

500 pcs: $0.096

1000 pcs: $0.079

5000 pcs: $0.07

10000 pcs: $0.065

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.155

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53253-0970

Part Number	53253-0970	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 9POS 2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	203844 pcs	Data sheet	53253-0970.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 3 Wall
Series	Micro-Latch 53253	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	0.331" (8.40mm)	Other Names	0532530970 53253-0970-ND WM13001
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	5.7mm
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.217" (5.51mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 9 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.130" (3.30mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose
