53047-1310

Affinity Medical Technologies - a Molex company

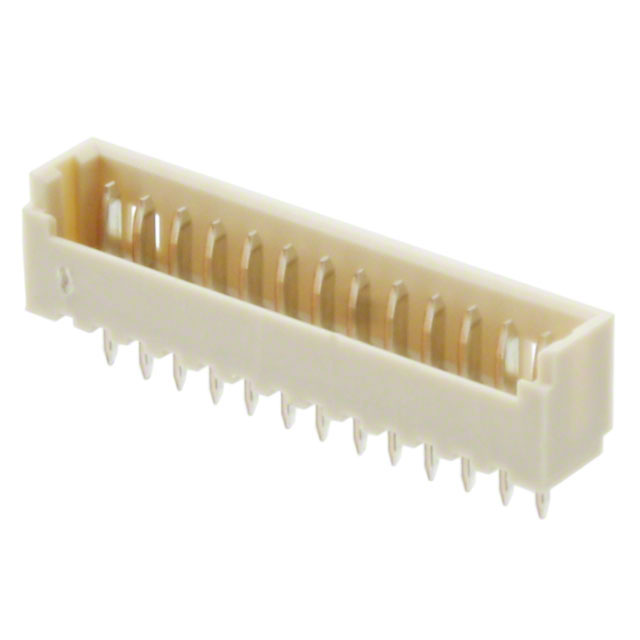

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53047-1310
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 13POS 1.25MM STR TIN
Datasheets:	53047-1310.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72746 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 72746 pcs

Reference Price (In US Dollars)

1 pcs: $0.491

10 pcs: $0.433

100 pcs: $0.374

500 pcs: $0.306

1000 pcs: $0.272

5000 pcs: $0.238

10000 pcs: $0.226

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.491

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53047-1310

Part Number	53047-1310	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 13POS 1.25MM STR TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72746 pcs	Data sheet	53047-1310.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PicoBlade 53047	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tray
Overall Contact Length	-	Other Names	053047-1310 053047-1310-C 0530471310 0530471310-C 530-47-1310-P 53047-1310-C 53047-1310-CL100 530471310 530471310-C WM17003
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	13
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.165" (4.20mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 13 position 0.049" (1.25mm)	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Phosphor Bronze	Contact Length - Post	0.091" (2.30mm)
Contact Length - Mating	0.089" (2.25mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	35.4µin (0.90µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
