53015-1310

Affinity Medical Technologies - a Molex company

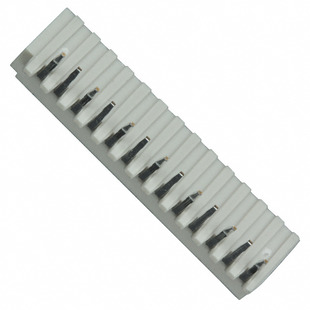

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53015-1310
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2MM 13POS RT ANG TIN
Datasheets:	53015-1310.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	77539 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 77539 pcs

Reference Price (In US Dollars)

1 pcs: $0.48

10 pcs: $0.424

100 pcs: $0.366

500 pcs: $0.299

1000 pcs: $0.266

5000 pcs: $0.233

10000 pcs: $0.221

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.48

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53015-1310

Part Number	53015-1310	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2MM 13POS RT ANG TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	77539 pcs	Data sheet	53015-1310.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MicroBlade 53015	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	053015-1310 053015-1310-E 0530151310 0530151310-E 53015-1310-E 530151310 530151310-E WM18989
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	13
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.183" (4.65mm)
Insulation Color	White	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 13 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Phosphor Bronze	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.122" (3.10mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	35.4µin (0.90µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Telecommunications
