5055670271

Affinity Medical Technologies - a Molex company

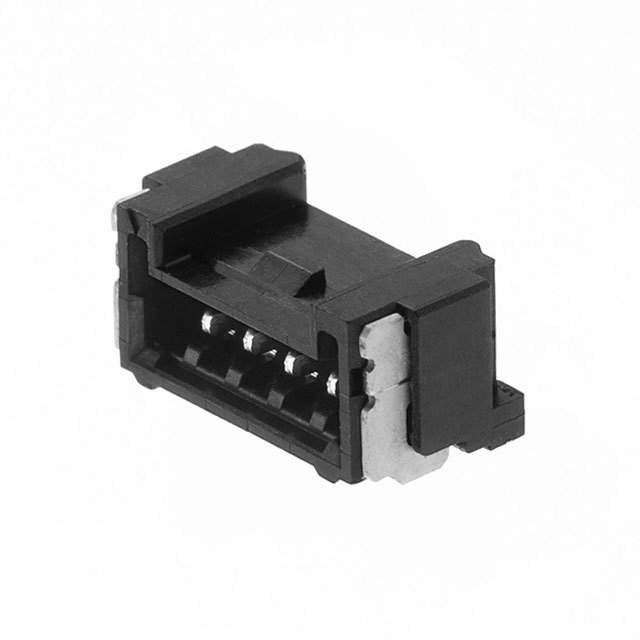

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5055670271
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MICRO-LOCK PLUS RIGHT ANGLE HEAD
Datasheets:	1.5055670271.pdf 2.5055670271.pdf 3.5055670271.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	106733 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 106733 pcs

Reference Price (In US Dollars)

1 pcs: $0.282

10 pcs: $0.248

100 pcs: $0.214

500 pcs: $0.175

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.282

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5055670271

Part Number	5055670271	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MICRO-LOCK PLUS RIGHT ANGLE HEAD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	106733 pcs	Data sheet	1.5055670271.pdf 2.5055670271.pdf 3.5055670271.pdf
Voltage Rating	50VAC/DC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Lock PLUS 505567	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	WM17038CT
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.154" (3.90mm)
Insulation Color	Black	Ingress Protection	-
Features	Solder Retention	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount, Right Angle 2 position 0.049" (1.25mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial
