5054051470

Affinity Medical Technologies - a Molex company

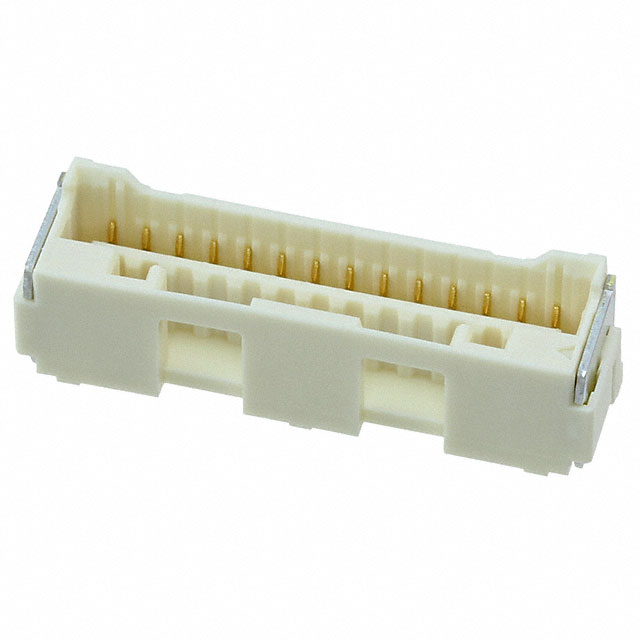

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5054051470
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	1.5 WB SINGLE ROWREC EMBOSSED TA
Datasheets:	5054051470.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	168219 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 168219 pcs

Reference Price (In US Dollars)

900 pcs: $0.229

1800 pcs: $0.196

2700 pcs: $0.19

6300 pcs: $0.183

9000 pcs: $0.174

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.229

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5054051470

Part Number	5054051470	Manufacturer	Affinity Medical Technologies - a Molex company
Description	1.5 WB SINGLE ROWREC EMBOSSED TA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	168219 pcs	Data sheet	5054051470.pdf
Voltage Rating	100V	Termination	Solder
Style	Board to Cable/Wire	Series	CLIK-Mate 505405
Row Spacing - Mating	-	Pitch - Mating	0.059" (1.50mm)
Packaging	Tape & Reel (TR)	Other Names	505405-1470 WM12860TR
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Resin	Insulation Height	0.285" (7.25mm)
Insulation Color	Beige	Ingress Protection	-
Features	Solder Retention	Fastening Type	Latch Holder
Detailed Description	14 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Gold	Current Rating	Varies by Wire Gauge
Contact Type	Forked	Contact Shape	-
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	Automotive, General Purpose, Industrial, Lighting, Medical
