5051105091

Affinity Medical Technologies - a Molex company

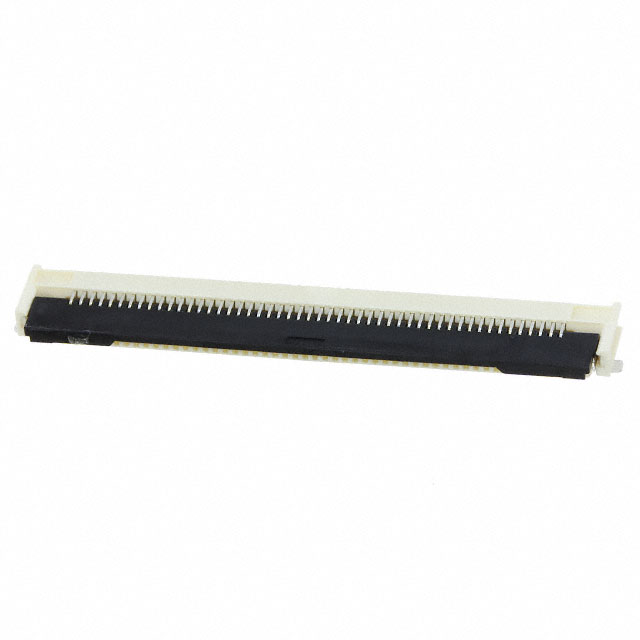

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5051105091
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC/FPC BOTTOM 50P .5MM R/A
Datasheets:	1.5051105091.pdf 2.5051105091.pdf 3.5051105091.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	115313 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 115313 pcs

Reference Price (In US Dollars)

3000 pcs: $0.287

6000 pcs: $0.273

9000 pcs: $0.267

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.287

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5051105091

Part Number	5051105091	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC/FPC BOTTOM 50P .5MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	115313 pcs	Data sheet	1.5051105091.pdf 2.5051105091.pdf 3.5051105091.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 505110	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	505110-5091 5051105091-ND WM11294TR
Operating Temperature	-40°C ~ 105°C	Number of Positions	50
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	25	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	Beige	Height Above Board	0.075" (1.90mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	50 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	1.97µin (0.050µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tabbed, Tapered
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Color	Black
