5051102291

Affinity Medical Technologies - a Molex company

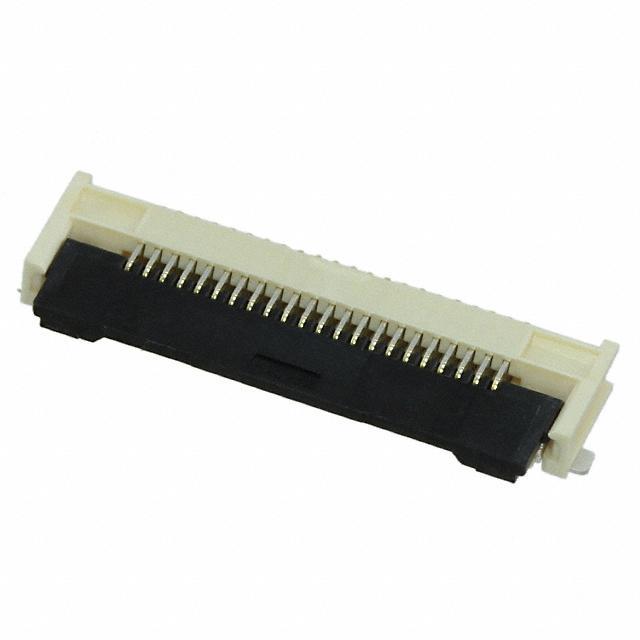

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5051102291
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC/FPC BOTTOM 22P .5MM R/A
Datasheets:	1.5051102291.pdf 2.5051102291.pdf 3.5051102291.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	92533 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 92533 pcs

Reference Price (In US Dollars)

1 pcs: $0.361

10 pcs: $0.317

25 pcs: $0.298

50 pcs: $0.286

100 pcs: $0.274

250 pcs: $0.249

500 pcs: $0.224

1000 pcs: $0.199

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.361

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5051102291

Part Number	5051102291	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC/FPC BOTTOM 22P .5MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	92533 pcs	Data sheet	1.5051102291.pdf 2.5051102291.pdf 3.5051102291.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 505110	Pitch	0.020" (0.50mm)
Packaging	Cut Tape (CT)	Other Names	WM11288CT
Operating Temperature	-40°C ~ 105°C	Number of Positions	22
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	25	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	9 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	Beige	Height Above Board	0.075" (1.90mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	22 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	1.97µin (0.050µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tabbed, Tapered
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Color	Black
