5042811700

Affinity Medical Technologies - a Molex company

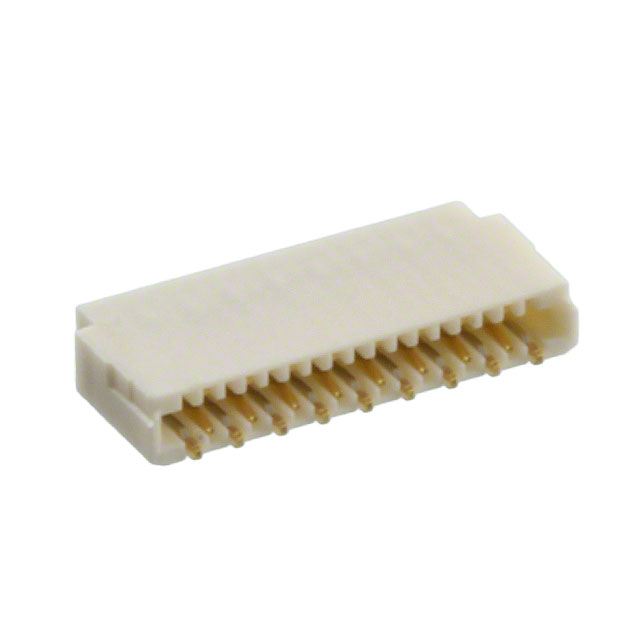

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5042811700
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC 17POS 0.30MM R/A
Datasheets:	1.5042811700.pdf 2.5042811700.pdf 3.5042811700.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	222798 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 222798 pcs

Reference Price (In US Dollars)

5000 pcs: $0.152

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.152

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5042811700

Part Number	5042811700	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC 17POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	222798 pcs	Data sheet	1.5042811700.pdf 2.5042811700.pdf 3.5042811700.pdf
Voltage Rating	50V	Termination	Solder
Series	504281	Pitch	0.012" (0.30mm)
Packaging	Tape & Reel (TR)	Other Names	504281-1700 WM10602TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	17
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	7 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	White	Height Above Board	0.039" (1.00mm)
Flat Flex Type	FPC	Features	-
FFC, FCB Thickness	0.30mm	Detailed Description	17 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.3A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Tapered
Actuator Material	-	Actuator Color	-
