5035663500

Affinity Medical Technologies - a Molex company

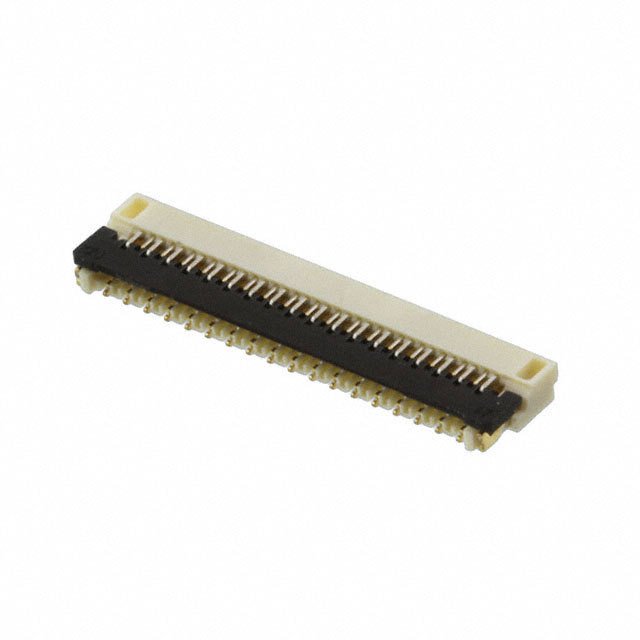

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5035663500
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 35POS 0.30MM R/A
Datasheets:	1.5035663500.pdf 2.5035663500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	93826 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 93826 pcs

Reference Price (In US Dollars)

3000 pcs: $0.372

6000 pcs: $0.353

9000 pcs: $0.345

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.372

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5035663500

Part Number	5035663500	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 35POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	93826 pcs	Data sheet	1.5035663500.pdf 2.5035663500.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 503566	Pitch	0.012" (0.30mm)
Packaging	Tape & Reel (TR)	Other Names	503566-3500 503566-3500-TR750 WM8973TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	35
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0, UL94 HB
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	White	Height Above Board	0.037" (0.95mm)
Flat Flex Type	FPC	Features	Solder Retention
FFC, FCB Thickness	0.20mm	Detailed Description	35 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tabbed
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Color	Black
